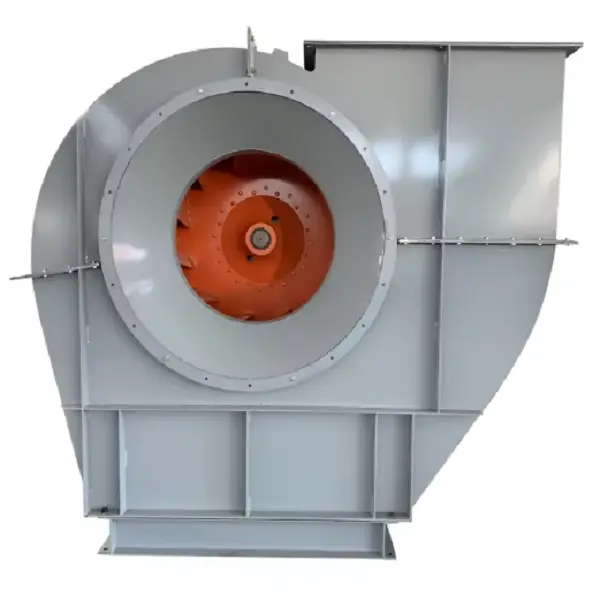

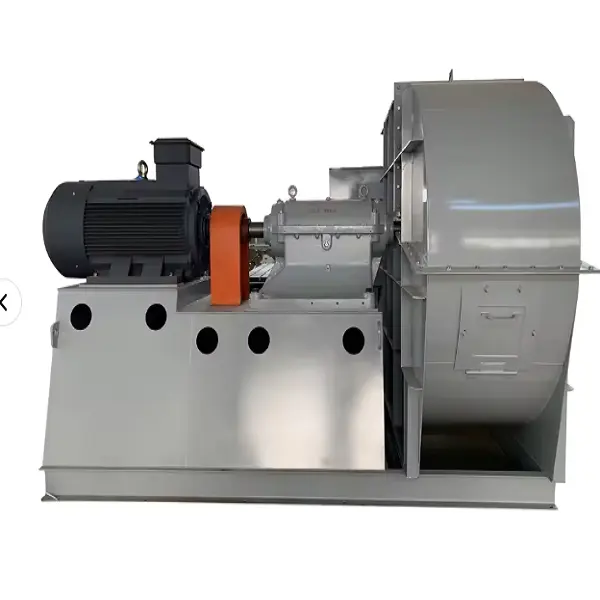

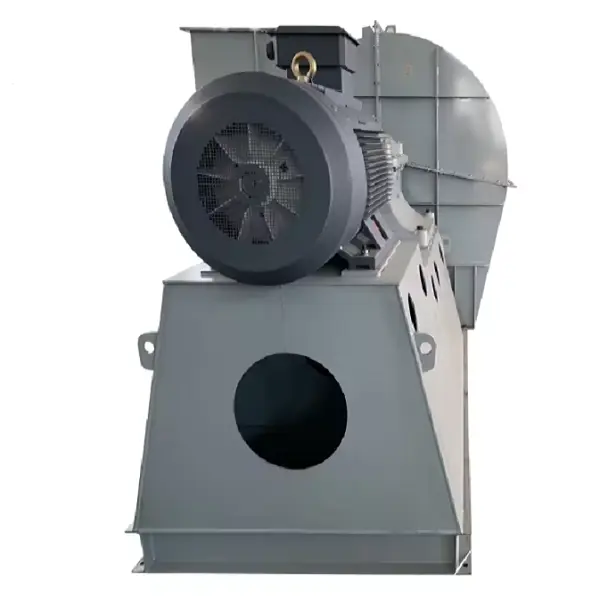

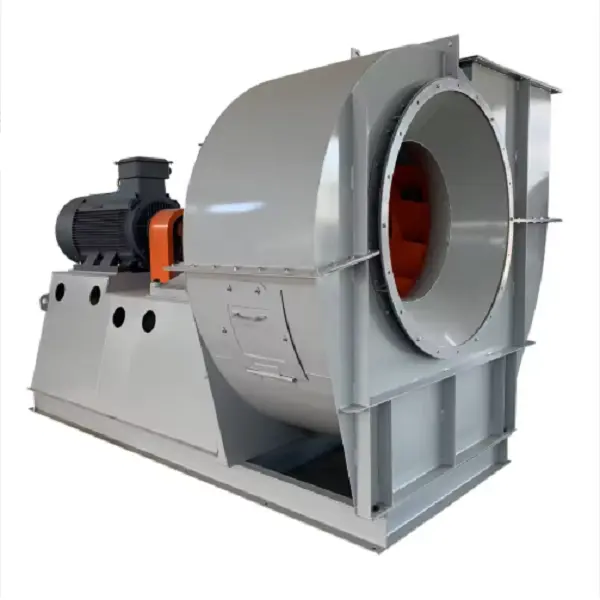

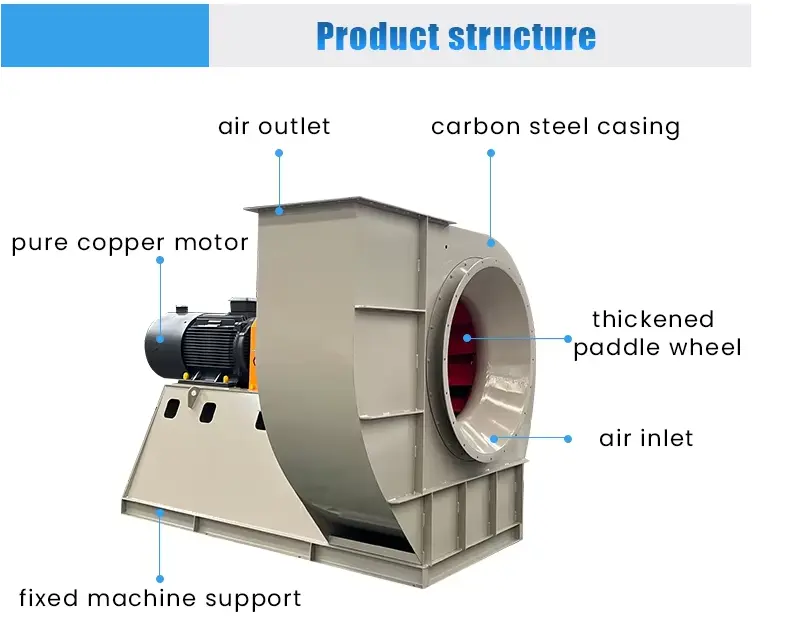

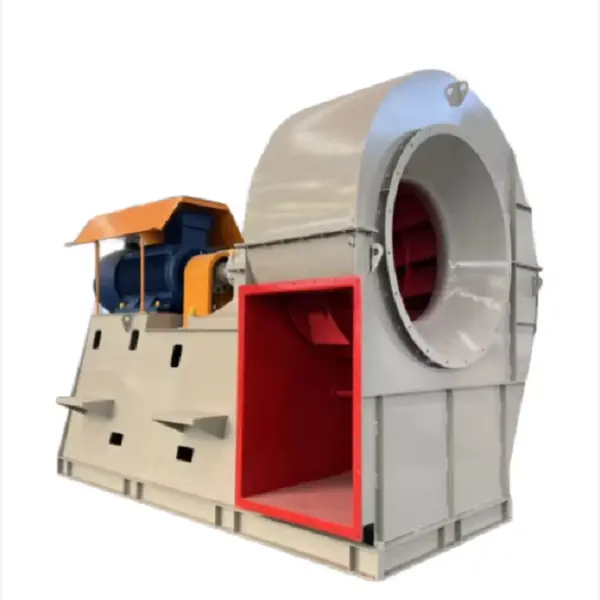

Hebei Ketong quality High Temperature Boiler Draft Fan, mainly used for forced draft or induced draft in industrial boiler systems, with high-temperature resistant material manufacturing (such as heat-resistant alloy steel impellers and casings) and special sealing structures to ensure stable operation under high-temperature flue gas environments, effectively supporting the normal combustion and heat exchange of boilers.
The installation location varies, but is typically at the flue gas outlet of industrial boilers (induced draft type), the air supply inlet of boiler combustion chambers (forced draft type), the connection point of boiler flue gas purification pre-treatment equipment, or the front end of boiler heat recovery systems. The primary function of the component is to convey high-temperature flue gas (containing dust particles), combustion-supporting air, or other high-temperature gas media generated during boiler operation.
The typical buyers of this fan include thermal power plants, chemical fertilizer factories (with boiler systems), metallurgical plants (steel, non-ferrous metals), industrial boiler manufacturing companies, or boiler supporting engineering enterprises. This high temperature boiler draft fan can withstand long-term high-temperature operation, fully meeting the draft, ventilation, and flue gas discharge needs of industrial boiler systems, while strictly complying with the boiler equipment safety operation standards and industrial flue gas emission specifications.
|
Model |
Speed r/min |
Total pressure(pa) |
Flux(m³/h) |
Power(KW) |
|
4A |
2900 |
3852-3407 |
2198-3215 |
5.5 |
|
4.5A |
2900 |
4910-4256 |
3130-4792 |
7.5,11 |
|
5A |
2900 |
6035-5180 |
4293-6762 |
15, 18.5 |
|
5.6A |
2900 |
7610-6527 |
6032-9500 |
22, 30 |
|
6.3A |
2900 |
9698-8310 |
8588-13525 |
45-55 |
|
7.1A |
2970 |
12421-12078 |
12292-14643 |
75 |
|
2980 |
11776-10635 |
15862-19360 |
110 |
|
|
8D |
2900 |
15955-13634 |
17584-27696 |
132, 200 |
|
1450 |
3834-3294 |
8792-13848 |
18.5, 30 |
|
|
9D |
1450 |
6143-5065 |
17172-30052 |
30-45 |
|
10D |
1450 |
6143-5065 |
17172-30052 |
55-75 |
|
11.2D |
1450 |
7747-6382 |
27126-42221 |
110, 132 |
|
960 |
3346-2763 |
15973-27953 |
30-37 |
|
|
12.5D |
1450 |
9713-7993 |
33540-58695 |
160, 250 |
|
960 |
4179-3450 |
22206-38860 |
45， 75 |
|
|
14D |
1450 |
12285-10095 |
47121-82463 |
250， 410 |
|
960 |
5262-4341 |
31197-54596 |
75， 110 |
|
|
16D |
1450 |
16250-13324 |
70339-123090 |
500， 850 |
|
960 |
6911-5696 |
46596-81496 |
185， 220 |
High temperature boiler draft fan is suitable for industrial ventilation, forging and metallurgical furnaces, glass, electroplating, ceramics, batteries, thermal power plants, chemicals, cement, and sewage treatment. They can be widely used for material transportation in grain, feed, and mineral powder processing industries, as well as for supporting equipment such as cardboard machinery and tempered glass equipment.
