Hebei Ketong provides quality Type C High Temperature Centrifugal Fan. It is primarily used for gas transport and emission under medium and high-temperature conditions. It is typically installed at the inlet or outlet of industrial boiler exhaust ducts, thermal equipment tail gas systems, drying equipment ventilation ducts, or medium-temperature waste gas treatment devices. It transports medium- and high-temperature flue gas, hot circulating air, medium-temperature process gas, or medium-temperature gas containing small amounts of impurities.
These fans are typically supplied to metallurgical plants, thermal power stations, building materials kiln enterprises, chemical high-temperature workshops, or industrial environmental engineering companies.This fan can meet relevant standards for gas transport, process compliance, and environmental emissions in medium- and high-temperature environments. Flexible adjustment of the rotational speed allows for effective correction of selection deviations. The equipment is straightforward to install and maintain, fully meeting the process requirements and environmental standards of medium-to-high temperature industrial applications.
Hebei Ketong supplies the high-temperature resistant, stable-performance Type C High Temperature Centrifugal Fan with bulk order support, instant stock access and factory-direct competitive rates.
|
Number |
Machine number No |
Rotational speed r/min |
Total Pressure Pa |
Volumetric Flow Rate m³/h |
Motor power KW |
|
1 |
5C |
2800 |
3875~2715 |
3109~14508 |
11~18.5 |
|
2650 |
3469~2443 |
2942~13731 |
7.5~15 |
||
|
2500 |
3090~2168 |
2776~12954 |
7.5~15 |
||
|
2370 |
2776~1952 |
2631~12280 |
5.5~11 |
||
|
2 |
6C |
2650 |
4993~3512 |
5085~23727 |
18.5、37 |
|
2500 |
4444~3129 |
4797~22384 |
18.5、30 |
||
|
2380 |
4032~2835 |
4567~21310 |
15~30 |
||
|
2240 |
3571~2511 |
4298~20056 |
11~22 |
||
|
2116 |
3188~2237 |
4060~18946 |
11~18.5 |
||
|
3 |
8C |
2000 |
5052~3551 |
9096~42447 |
30~75 |
|
1880 |
4464~3139 |
8550~39900 |
30~55 |
||
|
1780 |
4002~2815 |
8095~37778 |
30、45 |
||
|
1680 |
3571~2502 |
7646~35655 |
18.5~45 |
||
|
1500 |
2845~2001 |
6822~31835 |
18.5、30 |
||
|
1410 |
2511~1766 |
6413~29925 |
11~22 |
||
|
4 |
10C |
1570 |
4666~4031 |
18634~48515 |
45~75 |
|
1470 |
4060~3174 |
17390~54980 |
37~75 |
||
|
1400 |
3675~3059 |
16570~48475 |
37~75 |
||
|
1250 |
2924~2309 |
15000~40840 |
22~45 |
||
|
1150 |
292~1934 |
13655~43120 |
18.5~37 |

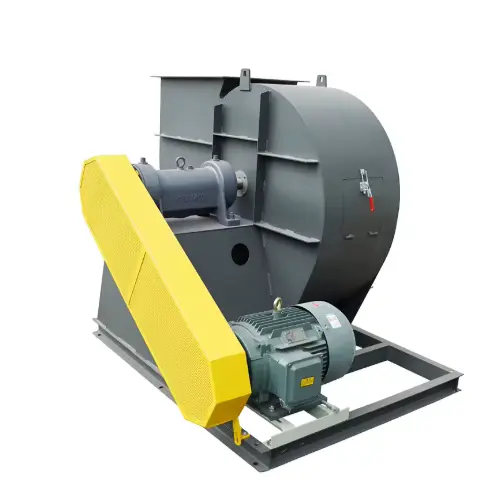

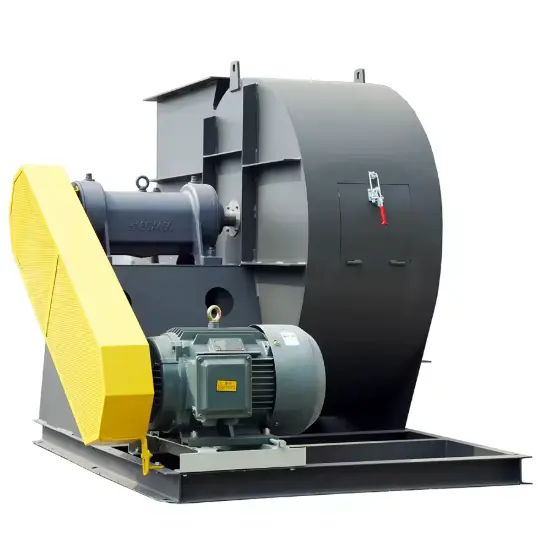

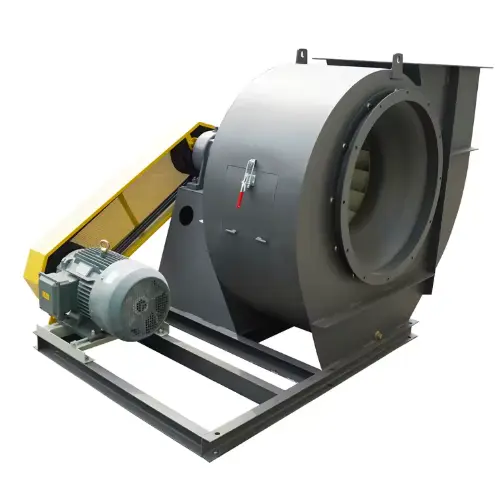

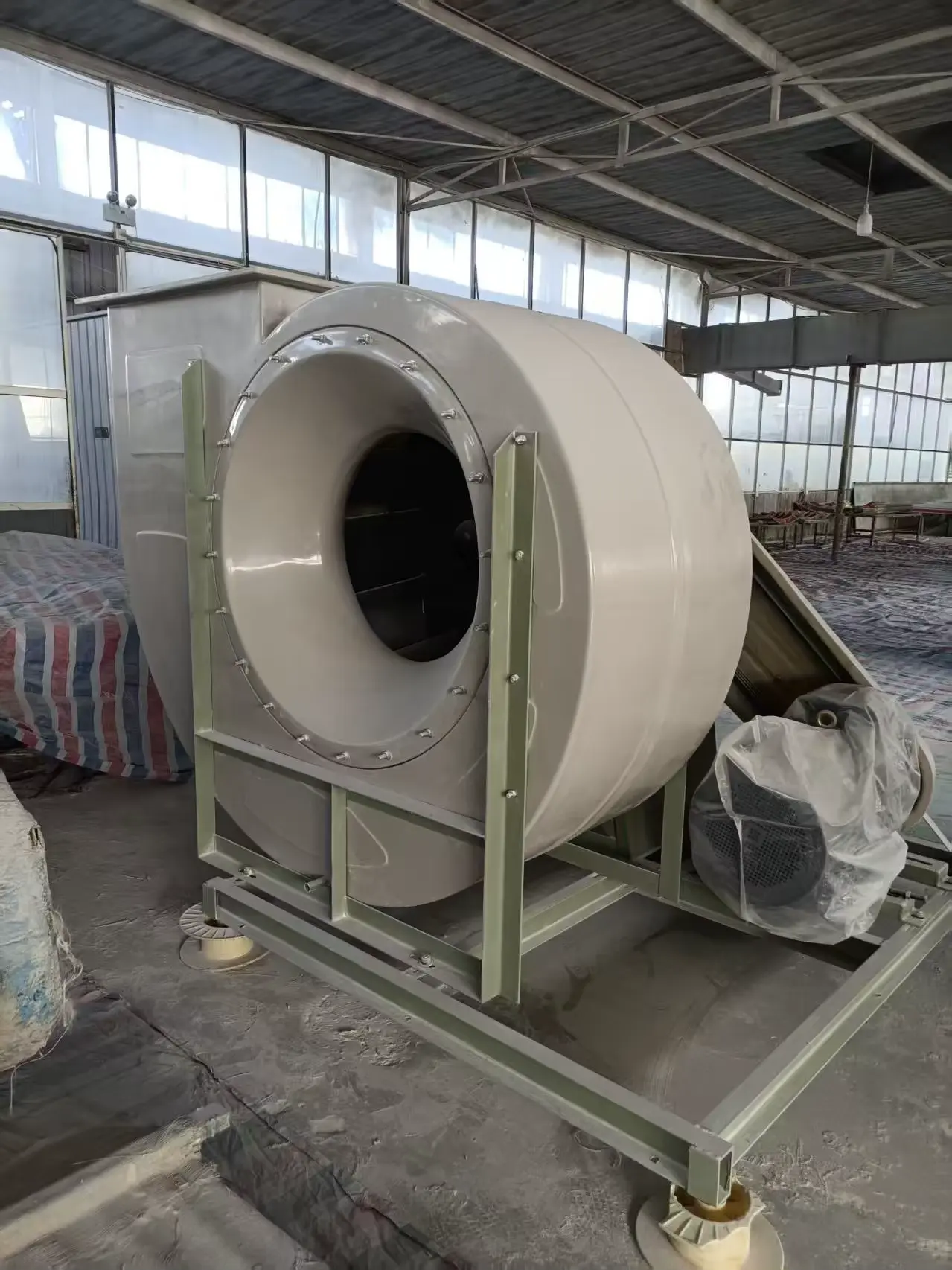

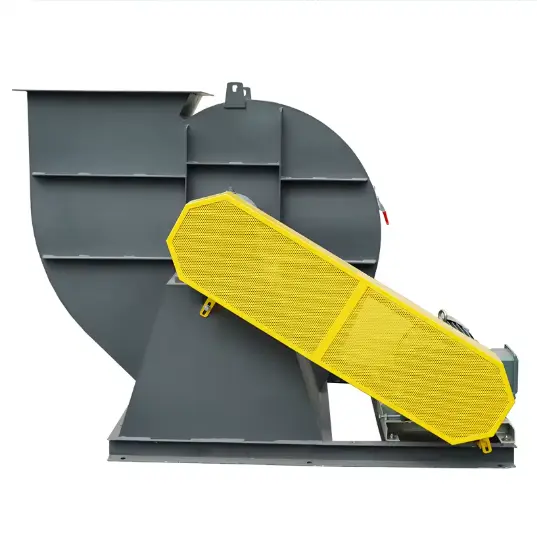

The Type C High Temperature Centrifugal Fan employs a Type C structure, suitable for medium-to-high temperature operating conditions.Type C series-connected fans deliver airflow capacities ranging from 4,400 to 89,000 m³/h with total pressures of 250 to 2,600 Pa. Their advantage lies in the ability to adjust fan performance parameters by altering rotational speed, thereby compensating for selection errors. However, the drive belt constitutes a consumable component requiring periodic replacement. Installation and maintenance prove straightforward, fully meeting the process requirements and environmental standards of medium-to-high temperature industrial applications.
