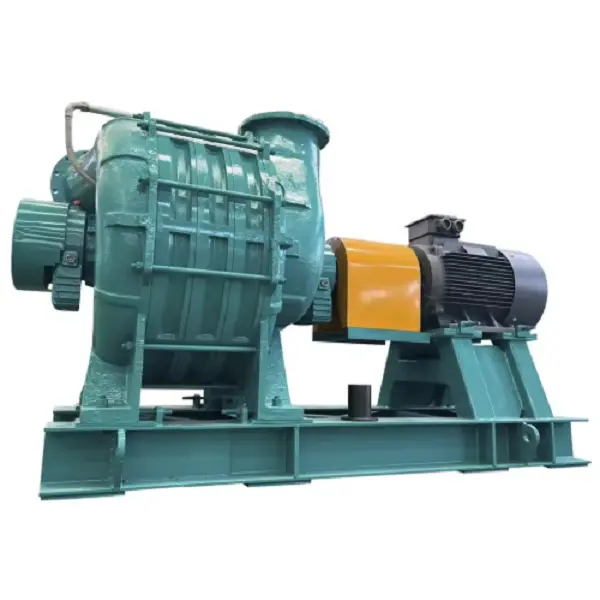

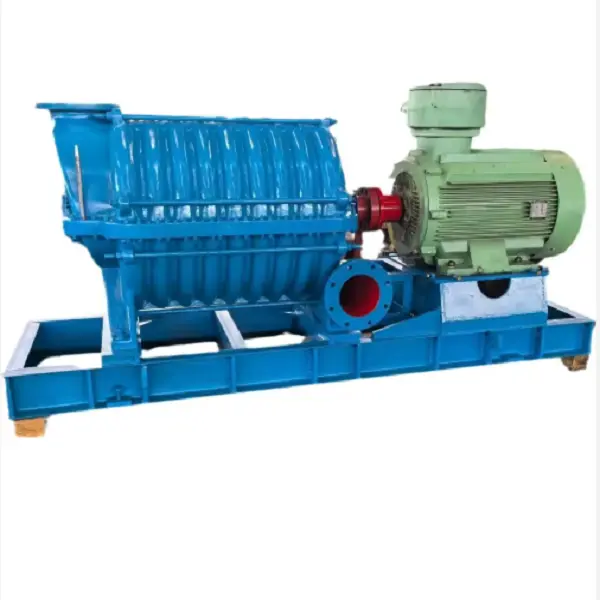

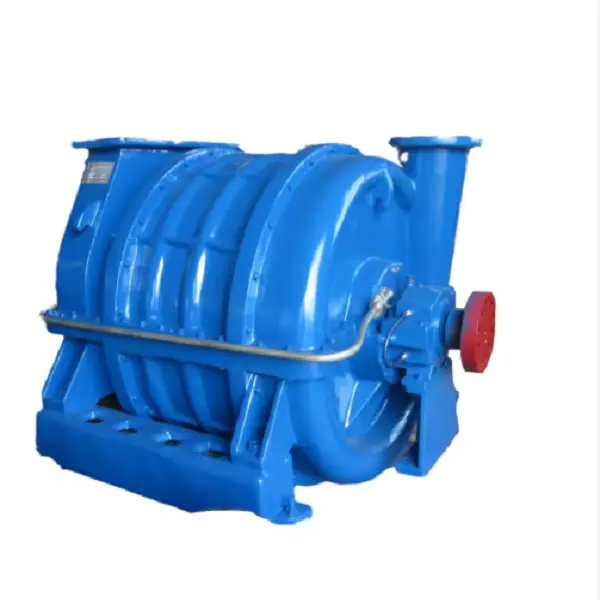

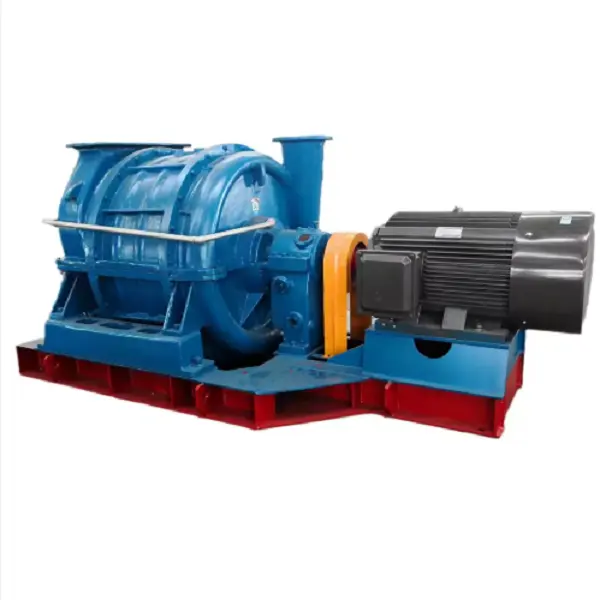

Multistage Centrifugal Blower

Hebei Ketong quality Multistage Centrifugal Blower. These are highly efficient ventilation units that achieve progressive pressure increase through multiple impellers arranged in series. They offer high operational efficiency (over 78%), energy savings, low vibration, reduced noise levels (≤85 dB), and smooth, reliable performance across industrial applications.

Send Inquiry

Product Description

Hebei Ketong is a professional Chinese manufacturer and supplier of Multistage Centrifugal Blower. The large-scale high-pressure forward-curved centrifugal fans are designed for industrial scenarios requiring efficient and stable airflow and gas compression.

Product Parameters

modei	F nrate	PTES KPa	SUre mmH₂O	Temperature	Mk um	PTeSsLure Baost KPa mmH O		speed r/min	power KW	pOwer KW	Kg
C15-1.35	15	98	10000	37	1.1	132.3	3500	2930	12	15	1000
C15-1.4	15	98	10000	37	1.1	137.2	4000	2930	15	18.5	1150
C15-1.45	15	98	10000	37	1.1	142.1	4500	2930	16	18.5	1300
C20-1.35	20	98	10000	37	1.1	132.3	3500	2930	17	18.5	1570
C20-1.4	20	98	10000	37	1.1	137.2	4000	2940	20	22	1800
C20-1.5	20	98	10000	37	1.1	147.0	5000	2950	25	30	2050
C20-1.55	20	98	10000	37	1.1	151.9	5500	2950	27	30	2100
C20-1.6	20	98	10000	37	1.1	156.8	6000	2950	30	37	2280
C25-1.35	25	98	10000	37	1.1	132.3	3500	2950	22	30	1580
C25-1.4	25	98	10000	37	1.1	137.2	4000	2950	25	30	1810
C25-1.5	25	98	10000	37	1.1	147.0	5000	2950	28	30	2060
C25-1.55	25	98	10000	37	1.1	151.9	5500	2950	32	37	2110
C25-1.6	25	98	10000	37	1.1	156.8	6000	2970	35	45	2300
C30-1.35	30	98	10000	37	1.1	132.3	3500	2950	25	30	1590
C30-1.4	30	98	10000	37	1.1	137.2	4000	2950	28	30	1830
C30-1.5	30	98	10000	37	1.1	147.0	5000	2950	34	37	2090
C30-1.55	30	98	10000	37	1.1	151.9	5500	2970	39	45	2140
C30-1.6	30	98	10000	37	1.1	156.8	6000	2970	42	45	2320
C30-1.65	30	98	10000	37	1.1	161.7	6500	2970	46	55	2540
C35-1.35	35	98	10000	37	1.1	132.3	3500	2950	28	30	1600
C35-1.4	35	98	10000	37	1.1	137.2	4000	2950	33	37	1840
C35-1.5	35	98	10000	37	1.1	147.0	5000	2970	40	45	2100
C35-1.55	35	98	10000	37	1.1	151.9	5500	2970	45	55	2150
C35-1.6	35	98	10000	37	1.1	156.8	6000	2970	50	55	2330
C35-1.65	35	98	10000	37	1.1	161.7	6500	2970	58	75	2550
C35-1.7	35	98	10000	37	1.1	166.6	7000	2970	62	75	2600
C40-1.35	40	98	10000	37	1.1	132.3	3500	2950	33	37	1610
C40-1.4	40	98	10000	37	1.1	137.2	4000	2970	37	45	1860
C40-1.5	40	98	10000	37	1.1	147.0	5000	2970	45	55	2130
C40-1.55	40	98	10000	37	1.1	151.9	5500	2970	50	55	2180
C40-1.6	40	98	10000	37	1.1	156.8	6000	2970	55	75	2370
C40-1.65	40	98	10000	37	1.1	161.7	6500	2970	62	75	2600
C40-1.7	40	98	10000	37	1.1	166.6	7000	2970	67	75	2650
C45-1.35	45	98	10000	37	1.1	132.3	3500	2970	35	45	1620
C45-1.4	45	98	10000	37	1.1	137.2	4000	2970	41	45	1870
C45-1.5	45	98	10000	37	1.1	147.0	5000	2970	53	75	2140
C45-1.55	45	98	10000	37	1.1	151.9	5500	2970	57	75	2190
C45-1.6	45	98	10000	37	1.1	156.8	6000	2970	62	75	2380
C45-1.65	45	98	10000	37	1.1	161.7	6500	2970	68	75	2610
C45-1.7	45	98	10000	37	1.1	166.6	7000	2970	73	90	2660
C50-1.35	50	98	10000	37	1.1	132.3	3500	2970	40	45	1630
C50-1.4	50	98	10000	37	1.1	137.2	4000	2970	45	55	1880
C50-1.5	50	98	10000	37	1.1	147.0	5000	2970	57	75	2190
C50-1.55	50	98	10000	37	1.1	151.9	5500	2970	62	75	2240
C50-1.6	50	98	10000	37	1.1	156.8	6000	2970	69	75	2440
C50-1.65	50	98	10000	37	1.1	161.7	6500	2970	75	90	2660
C50-1.7	50	98	10000	37	1.1	166.6	7000	2970	81	90	2710
C55-1.35	55	98	10000	37	1.1	132.3	3500	2970	44	55	1660
C55-1.4	55	98	10000	37	1.1	137.2	4000	2970	50	55	1920
C55-1.5	55	98	10000	37	1.1	147.0	5000	2970	65	75	2200
C55-1.55	55	98	10000	37	1.1	151.9	5500	2970	70	75	2250
C55-1.6	55	98	10000	37	1.1	156.8	6000	2970	75	90	2450
C55-1.65	55	98	10000	37	1.1	161.7	6500	2970	79	90	2670
C55-1.7	55	98	10000	37	1.1	166.6	7000	2970	85	90	2720

Working Principle

The working principle is based on multiple impellers arranged in series. Gas enters the first stage, is pressurized, and then continues through each subsequent stage. This results in significantly higher pressure and more stable airflow than single-stage fans can provide. The structure ensures consistent performance even under demanding operating conditions.

Product Features

1.Wide range of airflow and pressure vacuum options.

2.Oil-free exhaust gas, suitable for clean environments.

3.Computer-controlled dynamic balancing for low vibration and low noise.

4.Stable airflow with minimal pressure fluctuation impact.

5.High-efficiency impeller design for energy savings.

6.Simple, durable structure with trouble-free operation.

7.High precision due to primary-mold manufacturing; longer service life and lower noise.

8.Strict quality control ensuring standardized and reliable products.

9.Four-axis impeller machining technology for enhanced accuracy.

10.Optional piston rings for higher efficiency and extended operational lifespan.

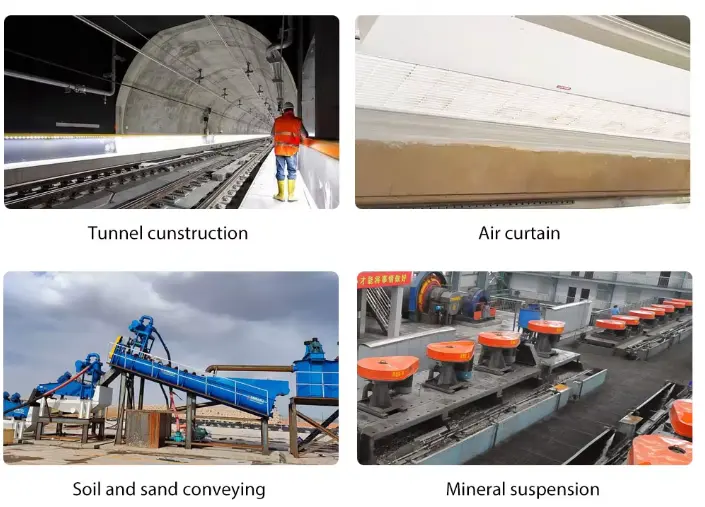

Application

Multistage centrifugal blowers are widely used in:

1.Wastewater treatment aeration

2.Post-combustion dust treatment

3.Dust collection systems

4.Dyeing and papermaking equipment

5.Flue gas desulfurization systems

6.Environmental protection equipment

7.Exhaust and drying systems

8.Air conveying systems

9.Transport of special gases and particulates

10.Aquaculture oxygen supply

11.Liquid agitation in electroplating tanks

12.General industrial liquid stirring

Multistage Centrifugal Blower
