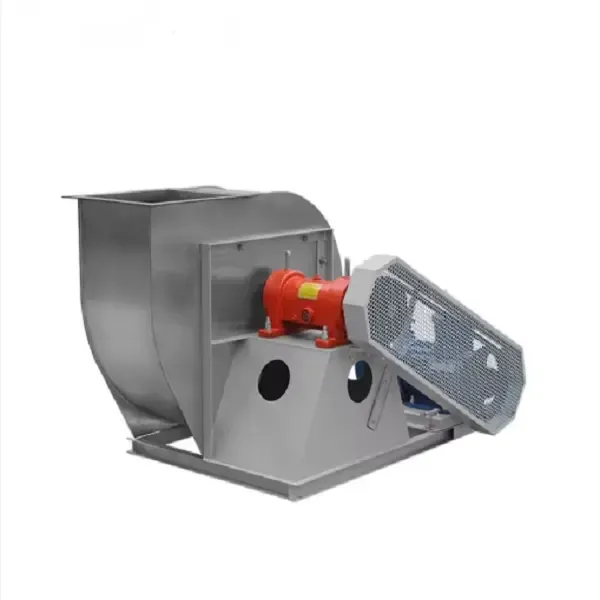

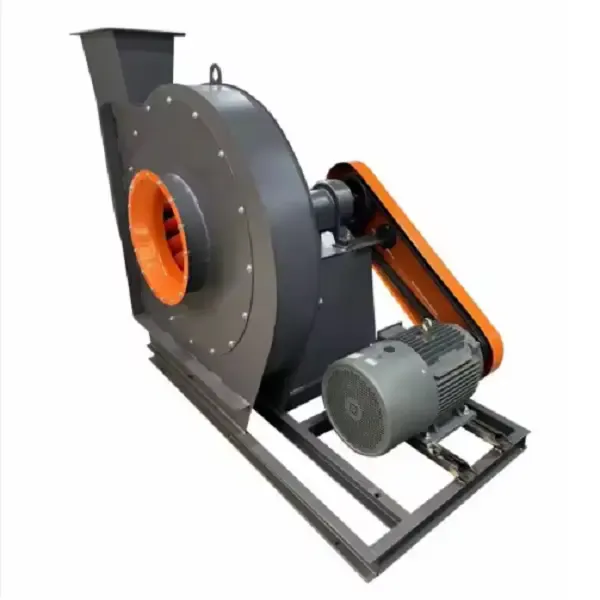

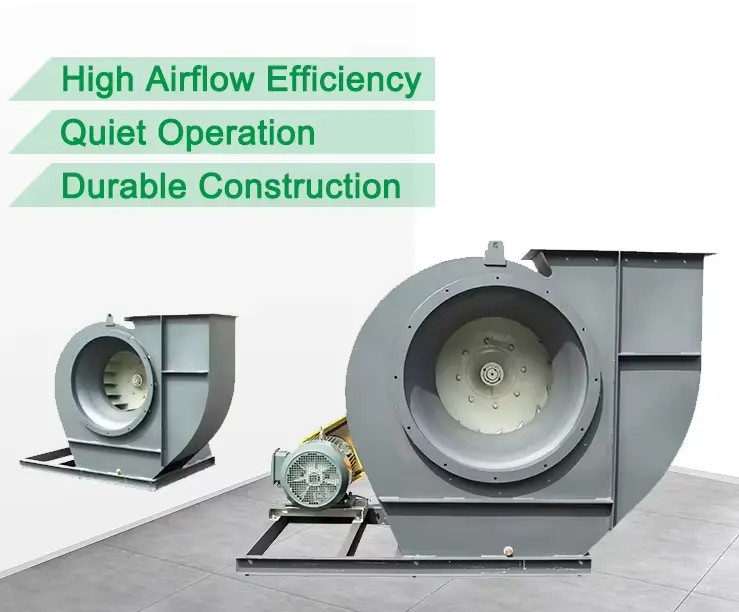

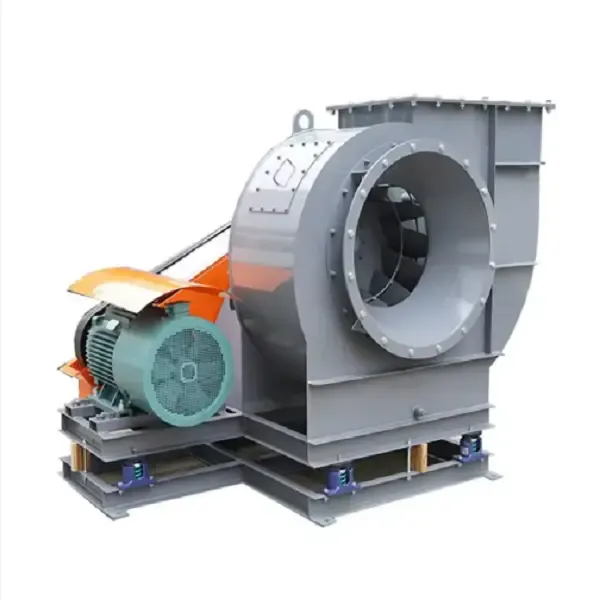

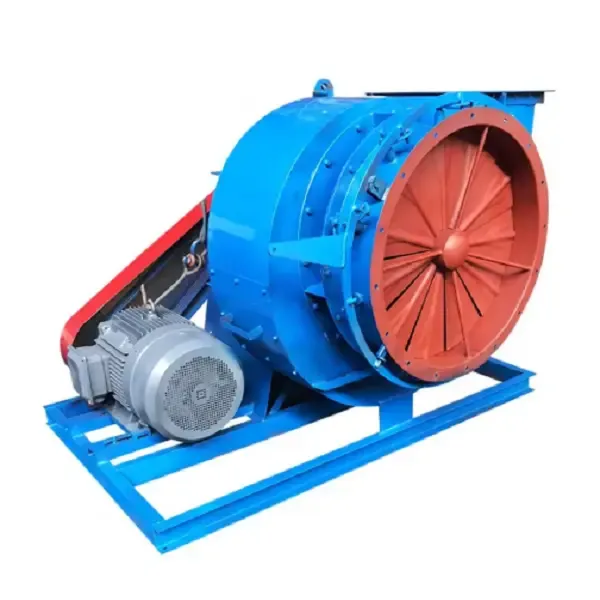

Boiler Blower offered by Hebei Ketong factory, mainly used to provide a stable and sufficient air supply for the combustion process of industrial boilers, with optimized air pressure and air volume design to ensure full mixing of fuel and air in the boiler furnace, thereby improving combustion efficiency and reducing energy waste.
It is generally installed at the air inlet of industrial boiler furnaces, the front end of boiler air preheaters, the connection between boiler air filters and combustion systems, or the air supply port of boiler auxiliary combustion equipment, responsible for conveying clean air, preheated air, or air mixed with a small amount of combustion-supporting additives. These fans are typically supplied to thermal power plants, industrial enterprises with boiler systems (such as chemical plants, steel plants, cement factories), boiler manufacturing companies, boiler operation and maintenance service providers, or industrial heating equipment engineering firms.
This Boiler Blower can fully meet the air supply demand for the normal combustion of industrial boilers, while strictly complying with industrial boiler combustion efficiency standards, boiler auxiliary equipment safety operation specifications, and energy-saving and emission-reduction requirements for industrial heating systems.
|
Fan Type |
Rpm(r/min) |
Pressure(Pa) |
Airflow(m³/h) |
power(KW) |
|
2.8A |
2900 |
994-606 |
1131-2356 |
1.5 |
|
3.2A |
2900 |
1300-792 |
1688-3517 |
2.2 |
|
3.2A |
1450 |
324-198 |
844-1758 |
1.1 |
|
3.6A |
2900 |
1758-989 |
2664-5268 |
3 |
|
3.6A |
1450 |
393-247 |
1332-2634 |
1.1 |
|
4A |
2900 |
2014-1320 |
4012-7419 |
5.5 |
|
4A |
1450 |
501-329 |
2006-3709 |
1.1 |
|
4.5A |
2900 |
2554-1673 |
5712-10562 |
7.5 |
|
4.5A |
1450 |
634-416 |
2856-5281 |
1.1 |
|
5A |
2900 |
3187-2019 |
7728-15455 |
15 |
|
5A |
1450 |
790-502 |
3864-7728 |
2.2 |
|
6A |
1450 |
1139-724 |
6677-13353 |
4 |
|
6A |
960 |
498-317 |
4420-8841 |
1.5 |
|
6D |
1450 |
1139-724 |
6677-13353 |
4 |
|
6D |
960 |
498-317 |
4420-8841 |
1.5 |
|
8D |
1450 |
2032-1490 |
15826-29344 |
18.5 |
|
8D |
960 |
887-651 |
10478-19428 |
5.5 |
|
8D |
730 |
512-376 |
7968-14773 |
3 |
|
10D |
1450 |
3202-2532 |
40441-56605 |
55 |
|
10D |
960 |
1395-1104 |
26775-37476 |
18.5 |
|
10D |
730 |
805-637 |
20360-28497 |
7.5 |
|
12D |
960 |
2013-1593 |
46267-64759 |
45 |
|
12D |
730 |
1160-919 |
35182-49244 |
18.5 |
|

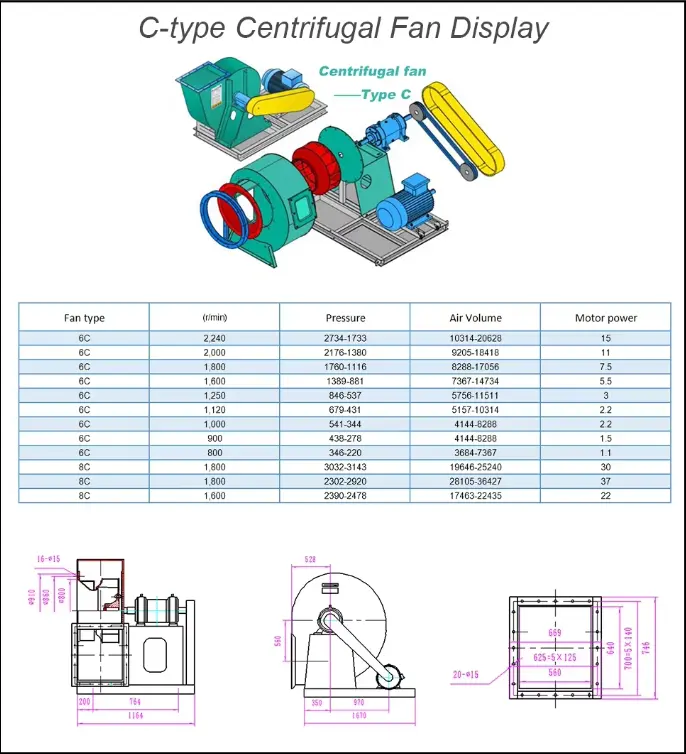

6C |
2240 |
2734-1733 |
10314-20628 |
15 |
|
6C |
2000 |
2176-1380 |
9205-18418 |
11 |
|
6C |
1800 |
1760-1116 |
8288-16576 |
7.5 |
|
6C |
1600 |
1389-881 |
7367-14734 |
5.5 |
|
6C |
1250 |
846-537 |
5756-11511 |
3 |
|
6C |
1120 |
679-431 |
5157-10314 |
2.2 |
|
6C |
1000 |
541-344 |
4144-9209 |
2.2 |
|
6C |
900 |
438-278 |
4144-8288 |
1.5 |
|
6C |
800 |
346-220 |
3684-7367 |
1.1 |
|
8C |
1800 |
3032-3143 |
19646-25240 |
30 |
|
8C |
1800 |
2302-2920 |
28105-36427 |
37 |
|
8C |
1600 |
2390-2478 |
17463-22435 |
22 |
|
8C |
1600 |
2303-1816 |
24982-32380 |
30 |
|
8C |
1250 |
1507-1106 |
13643-25297 |
11 |
|
8C |
1120 |
1209-1166 |
12224-15705 |
7.5 |
|
8C |
1120 |
1124-887 |
17487-22666 |
11 |
|
8C |
1000 |
963-929 |
10914-14022 |
5.5 |
|
8C |
1000 |
895-707 |
15614-20237 |
7.5 |
|
8C |
900 |
779-752 |
9823-12620 |
4 |
|
8C |
900 |
725-572 |
14052-18213 |
5.5 |
|
8C |
800 |
615-452 |
8732-16190 |
3 |
|
8C |
710 |
485-468 |
749-9956 |
2.2 |
|
8C |
710 |
450-356 |
11085-14368 |
3 |
|
8C |
630 |
381-280 |
6876-12749 |
2.2 |
|
10C |
1250 |
2373-1877 |
34863-48797 |
37 |
|
10C |
1120 |
1902-1505 |
31237-43722 |
30 |
|
10C |
1000 |
1514-1199 |
27890-39038 |
18.5 |
|
10C |
900 |
1225-970 |
25101-35134 |
15 |
|
10C |
800 |
967-766 |
22312-31230 |
11 |
|
10C |
710 |
761-603 |
19082-27717 |
7.5 |
|
10C |
630 |
599-475 |
17571-24594 |
5.5 |
|
10C |
560 |
473-375 |
15618-21861 |
4 |
|
10C |
500 |
377-299 |
13945-19519 |
3 |
|
12C |
1120 |
2746-2172 |
53978-75552 |
75 |
|
12C |
1000 |
2185-1969 |
48195-60397 |
45 |
|
12C |
1000 |
1859-1729 |
63953-67457 |
55 |
|
12C |
900 |
1767-1399 |
43375-60712 |
37 |
|
12C |
800 |
1395-1376 |
38556-41973 |
22 |
|
12C |
800 |
1321-1104 |
45391-53966 |
30 |
|
12C |
710 |
1097-869 |
34218-47895 |
18.5 |
|
12C |
630 |
883-684 |
30362-42498 |
15 |
|
12C |
560 |
682-673 |
26989-29381 |
7.5 |

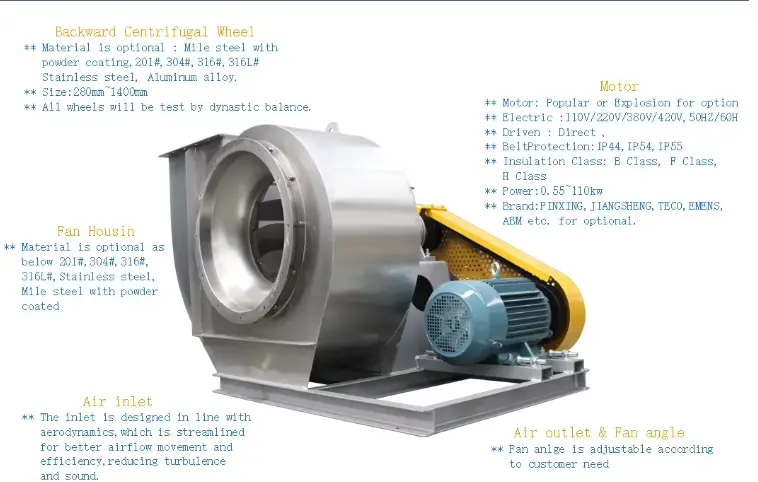

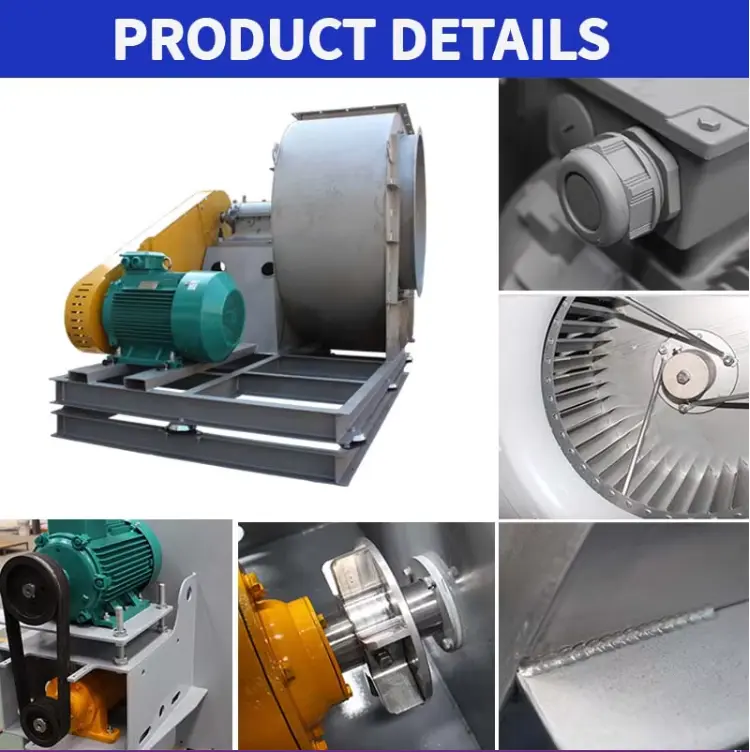

1．Upper Blade Design: The heart of the fan, typically made of high-strength steel, features a single flat blade with an internal tilt. This design reduces airflow resistance, improves stability, and prevents motor overload, contributing to energy efficiency and a longer service life.
2．Anti-Leak Bearing System: The fan incorporates a special bearing housing that utilizes a purge ring mechanism and advanced seals to effectively prevent oil leaks. This design ensures consistent performance, reduces maintenance requirements, and increases reliability.
3．Axial Flow Adjustment Port: An adjustment device, usually installed at the air inlet, allows for precise control of airflow, from fully open to fully closed. This enables operators to fine-tune the combustion air for maximum boiler efficiency.
4．Adaptive Inlet Adjustment: Some models feature an air inlet adjustment that can be modified during installation or maintenance. This feature optimizes the clearance between the inlet and the impeller, reducing internal losses and increasing the overall efficiency of the fan.

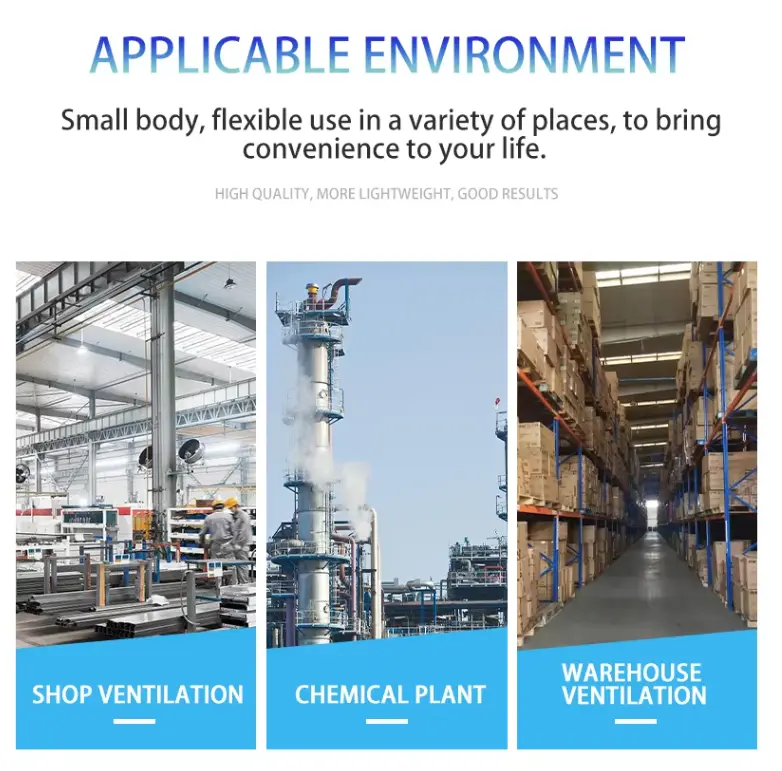

This Boiler Blower is indispensable in numerous industries that rely on steam and heat production:
1．Thermal Power Generation: A key component of coal-fired power plants, supplying air to the boilers for combustion and steam production for the turbines.
2．Industrial Production: Provides the necessary air for boilers in various industries, such as chemical, textile, and food processing.
3．Simplified Assembly and Maintenance: Its modular design facilitates transport, installation, and subsequent maintenance. The housing can be disassembled, allowing the rotor to be removed vertically for easy maintenance.
