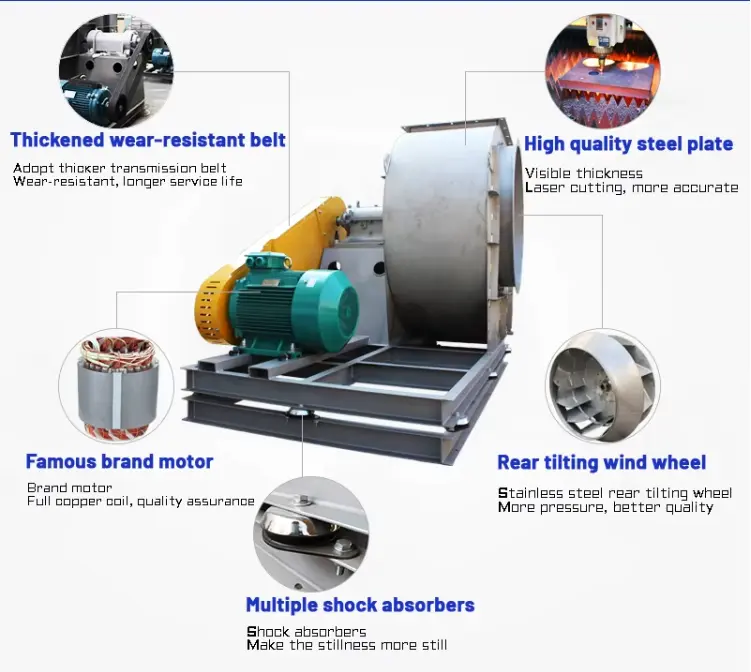

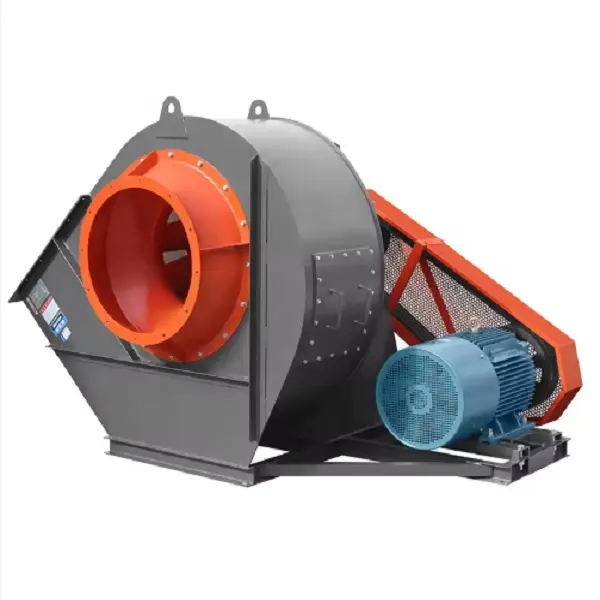

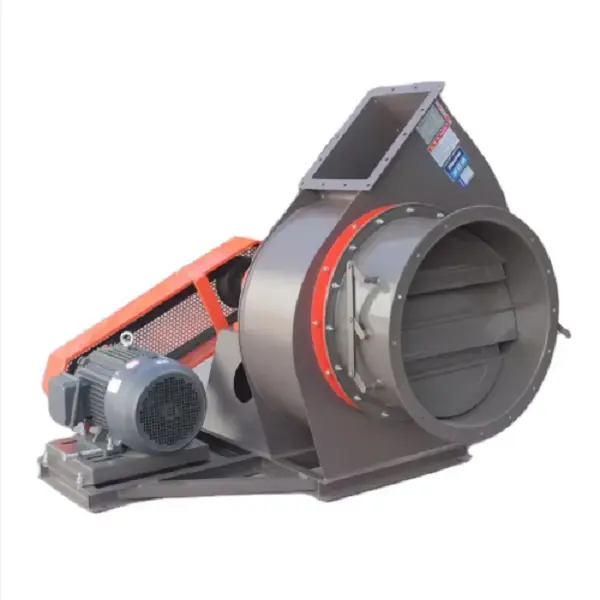

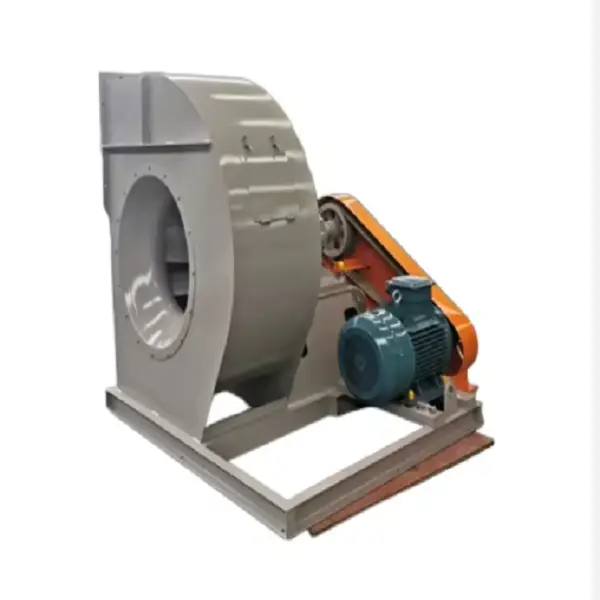

Type C Centrifugal Ventilator Fan from Hebei Ketong factory, mainly used for medium-pressure gas conveying in industrial production lines and large-scale ventilation systems, characterized by a belt-driven structure (motor and impeller connected via belt pulley), flexible speed adjustment, and strong adaptability to variable air volume demands, making it ideal for scenarios requiring adjustable air supply intensity.
It is generally installed at the air supply end of industrial boiler auxiliary ventilation systems, the exhaust pipeline of large-scale printing and dyeing workshops, the air circulation port of mechanical processing workshops, or the gas guiding path of medium-sized waste gas pretreatment equipment, responsible for conveying normal-temperature industrial exhaust gas, low-humidity dust-laden air, clean auxiliary air, or non-corrosive process gas. These fans are typically supplied to thermal power auxiliary equipment manufacturers, large-scale textile printing and dyeing enterprises, mechanical processing plants, medium-sized environmental protection engineering companies, or industrial ventilation system integrators.
This Type C Centrifugal Ventilator Fan can meet the variable air volume conveying and ventilation needs of industrial production lines and medium-sized environmental protection equipment, while strictly complying with industrial fan safety operation standards, workshop air quality emission specifications, and mechanical equipment noise control requirements.
|
Project |
Speed |
Power |
Airflow |
Total pressure |
|
r/min |
kilowatt |
m3/h |
Pa |
|
|
2.8 C |
2900 |
1.5-2 |
1131-2356 |
606-994 |
|
2900 |
0.75-2/220v |
1174-1800 |
619-776 |
|
|
3.2C |
2900 |
2.2-2 |
1688-3517 |
792-1300 |
|
2200 |
0.75-2 |
1483-3517 |
579-726 |
|
|
1800 |
0.55-2 |
1213-1860 |
387-486 |
|
|
3.6 C |
2900 |
3-2 |
2664-5268 |
989-1578 |
|
2200 |
1.5-2 |
2310-3434 |
723-881 |
|
|
1800 |
0.75-2 |
1890-2810 |
483-590 |
|
|
4C |
2900 |
5.5-2 |
4012-7419 |
1320-2014 |
|
2300 |
2.2-2 |
3573-5491 |
1238-917 |
|
|
2000 |
1.5-2 |
3107-4775 |
694-936 |
|
|
1700 |
1.1-2 |
2641-4058 |
501-676 |
|
|
4.5 C |
2900 |
7.5-2 |
5712-10562 |
1673-2554 |
|
2300 |
4-2 |
5088-7819 |
1163-1570 |
|
|
2000 |
3-2 |
4428-6799 |
879-1187 |
|
|
1700 |
2.2-2 |
3761-5779 |
635-858 |
|
|
5C |
2900 |
15-2 |
7728-15455 |
2019-3187 |
|
2300 |
7.5-2 |
7022-11363 |
1468-1978 |
|
|
2000 |
5.5-2 |
6106-9881 |
1110-1495 |
|
|
1700 |
3-2 |
5092-8399 |
802-1080 |
|
|
5.6C |
2600 |
18.5-2 |
12734-17824 |
2541-3209 |
|
2300 |
15-2 |
11265-15768 |
1511-1989 |
|
|
2000 |
7.5-2 |
9795-13711 |
1504-1900 |
|
|
1700 |
5.5-2 |
8326-11654 |
1086-1372 |
|
|
1400 |
3-2 |
6857-9589 |
737-930 |
|
|
6C |
2240 |
15-4 |
10314-20628 |
1733-2734 |
|
2000 |
11-4 |
9209-18418 |
1380-2176 |
|
|
1800 |
7.5-4 |
8288-16576 |
1116-1760 |
|
|
1600 |
5.5-4 |
7367-14734 |
881-1389 |
|
|
1450 |
4-4 |
6677-13353 |
724-1137 |
|
|
1120 |
2.2-4 |
5157-10314 |
431-679 |
|
|
900 |
1.5-4 |
4144-8288 |
278-438 |
|
|
800 |
1.1-4 |
3684-7367 |
220-346 |
|
|
6.3C |
2200 |
18.5-2 |
15342-21474 |
2303-2908 |
|
1900 |
11-2 |
13250-18546 |
1718-2169 |
|
|
1600 |
7.5-2 |
11158-15618 |
1218-1538 |
|
|
1300 |
5.5-2 |
9066-12689 |
804-1015 |
|
|
1000 |
2.2-4 |
6973-9761 |
475-600 |
|
|
700 |
0.75-4 |
4881-6833 |
233-294 |
|
|
7.1C |
2000 |
22-4 |
17000-28000 |
2150-2680 |
|
1800 |
18.5-4 |
15736-25265 |
1980-2294 |
|
|
1600 |
15-4 |
13987-22635 |
1823-2414 |
|
|
1450 |
11-4 |
12676-20513 |
1468-1873 |
|
|
1200 |
5.5-4 |
10490-16976 |
1120-1276 |
|
|
960 |
3-4 |
8392-13581 |
512-689 |
|
|
700 |
1.5-4 |
6119-9903 |
272-366 |
|
|
8C |
1800 |
30-2 |
29646-35240 |
3032-3143 |
|
1800 |
37-2 |
34105-41427 |
2302-2920 |
|
|
1600 |
22-2 |
29000-31000 |
2390-2878 |
|
|
1500 |
18.5-4 |
17000-27800 |
2210-2700 |
|
|
1250 |
11-4 |
15643-25297 |
1106-1507 |
|
|
112 |
7.5-4 |
17224-19705 |
887-1124 |
|
|
1000 |
5.5-4 |
13914-16022 |
707-895 |
|
|
900 |
4-4 |
9832-14620 |
576-725 |
|
|
800 |
3-4 |
8732-16190 |
452-485 |
|
|
9C |
1500 |
22-4 |
20530-28000 |
1420-2180 |
|
1700 |
30-4 |
24800-39850 |
1850-2720 |
|
|
1600 |
37-2 |
28000-43200 |
2100-3100 |
|
|
1450 |
45-2 |
29800-45900 |
2480-3520 |
|
|
10C |
1450 |
55-4 |
51008-54800 |
2400-2980 |
|
1350 |
45-4 |
45000-50128 |
1950-2780 |
|
|
1250 |
37-4 |
34863-48797 |
1877-2373 |
|
|
1120 |
30-4 |
31237-43722 |
1505-1902 |
|
|
1000 |
18.5-4 |
27890-39038 |
1199-1514 |
|
|
900 |
15-4 |
25101-35234 |
970-1225 |
|
|
800 |
11-4 |
22312-31230 |
766-967 |
|
|
710 |
7.5-4 |
19802-27717 |
603-761 |
|
|
630 |
5.5-4 |
17571-24594 |
475-577 |
|
|
560 |
4-4 |
15684-21861 |
375-437 |
|
|
11.2C |
900 |
30-4 |
29850-52700 |
1350-2020 |
|
950 |
37-4 |
31980-56470 |
1550-2320 |
|
|
980 |
45-4 |
34120-60230 |
1770-2640 |
|
|
980 |
55-4 |
36550-64530 |
2030-3040 |
|
|
1000 |
75-4 |
40210-70990 |
2460-3670 |
|
|
12C |
1120 |
75-4 |
53978-75552 |
2172-2746 |
|
1000 |
45-4 |
48195-60397 |
1969-2185 |
|
|
1000 |
55-4 |
69953-67457 |
1729-1859 |
|
|
900 |
37-4 |
13375-60712 |
1399-1767 |
|
|
800 |
22-4 |
38556-41973 |
1376-1395 |
|
|
800 |
30-4 |
45391-53996 |
1104-1321 |
|
|
710 |
18.5-4 |
34218-47895 |
869-1097 |
|
|
630 |
15-4 |
30362-42498 |
684-863 |
|
|
560 |
7.5-4 |
26989-29381 |
676-682 |
|
|
560 |
11-4 |
31774-37776 |
540-646 |
|
|
12.5 C |
1150 |
132-4 |
83685-102396 |
2586-3168 |
|
1000 |
90-4 |
72000-91000 |
2340-2900 |
|
|
850 |
75-4 |
69000-82000 |
2200-2700 |
|
|
700 |
55-4 |
66000-71000 |
1980-2400 |
|
|
14C |
1300 |
160-4 |
98000-118000 |
2500-3100 |
|
1000 |
110-4 |
76535-107124 |
2361-2985 |
|
|
950 |
90-4 |
69000-96000 |
2100-2800 |
|
|
850 |
75-4 |
68881-96412 |
1908-2412 |
|
|
800 |
55-4 |
61228-85699 |
1506-1903 |
|
|
710 |
37-4 |
54340-76058 |
1185-1497 |
|
|
630 |
30-4 |
48217-67488 |
932-1177 |
|
|
560 |
18.5-4 |
42859-59990 |
736-929 |
|
|
500 |
15-4 |
38267-53562 |
587-741 |
|
|
450 |
11-4 |
34440-48206 |
474-599 |

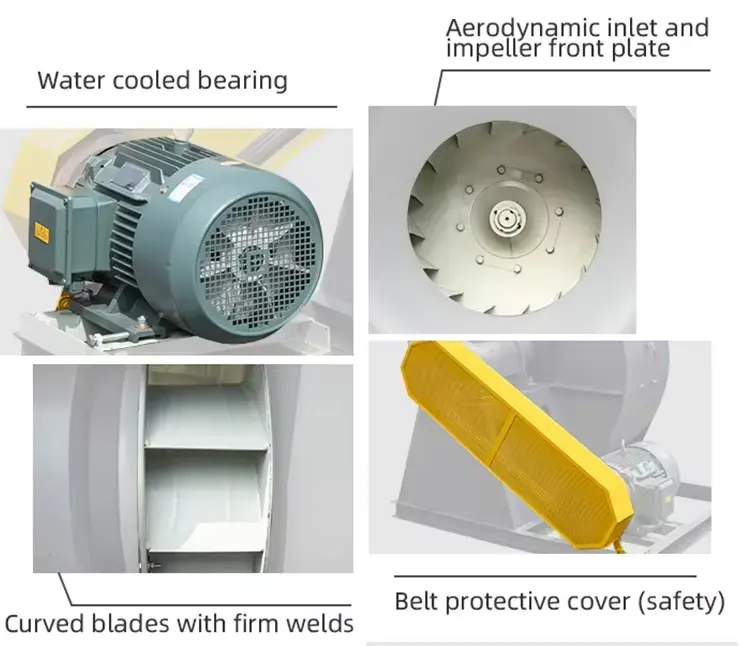

1．Belt Flexibility: The Type C Centrifugal Ventilator Fan design provides excellent speed control, allowing it to flexibly adapt to various operating conditions.
2．High-Speed Performance: Designed for high-speed systems, this fan features a high-speed front fan, enabling it to withstand the world's most demanding operating environments.

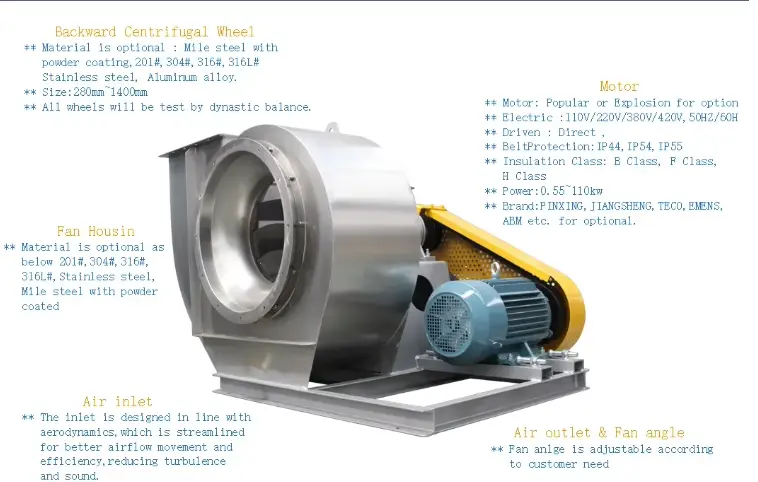

3．Durable Impeller Construction: The impeller offers a variety of metal finishes and is precision-matched, effectively reducing vibration and extending service life.

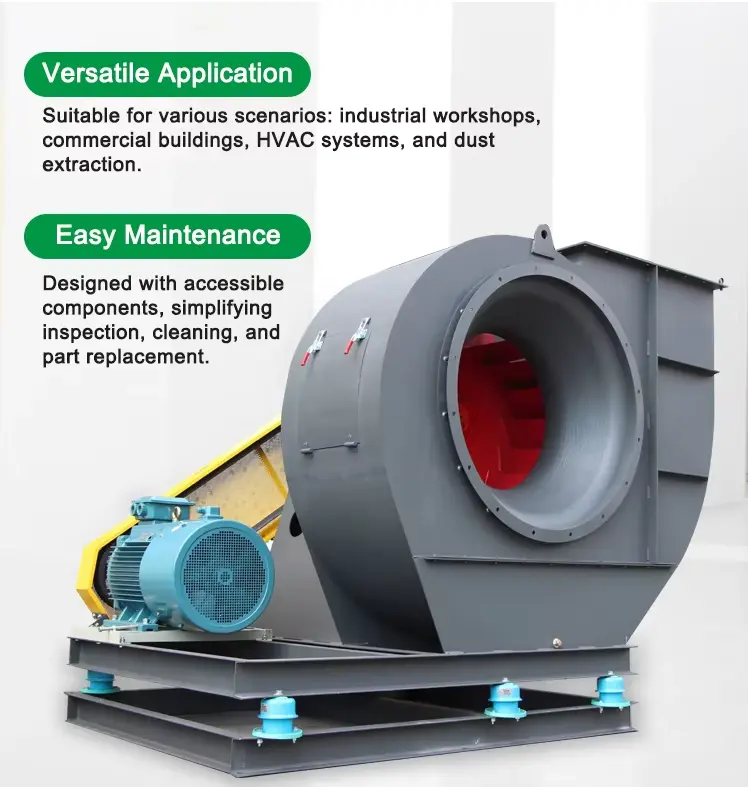

4．Easy Maintenance: Easy-to-maintain components and a modular design facilitate inspection, cleaning, and replacement of parts, minimizing downtime.
1．Industrial Ventilation: Provides fresh air and ventilation for factories, warehouses, and offices.
2．HVAC Systems: Suitable for commercial and industrial heating, ventilation, and air conditioning systems.
3．Dust Removal and Air Purification: Effectively removes particulate matter and odors from process areas.
4．Material Handling: Supports the handling of materials in the air in industries such as food processing, pharmaceuticals, and woodworking.
