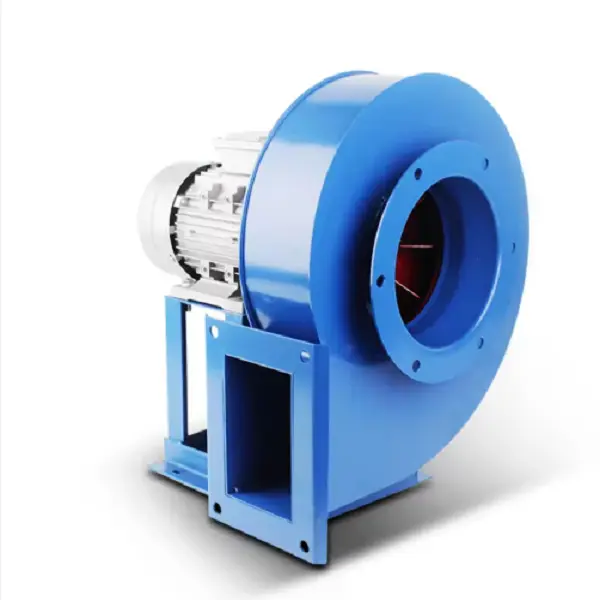

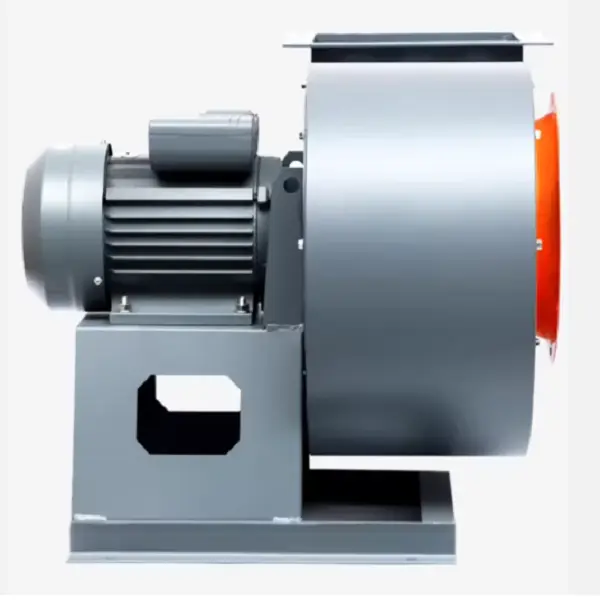

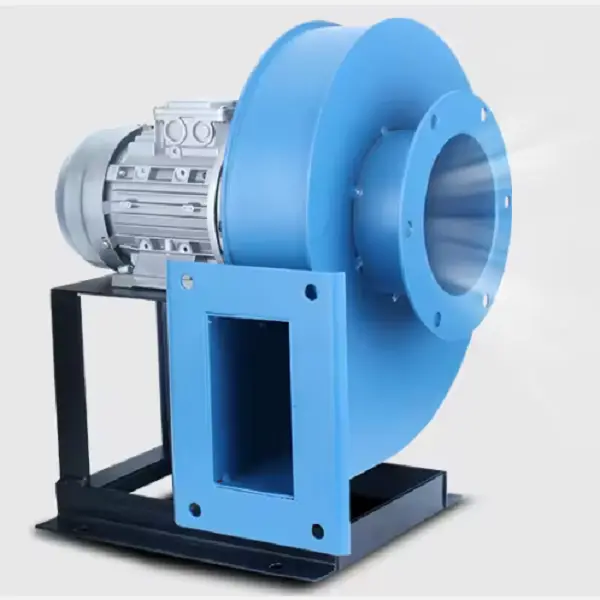

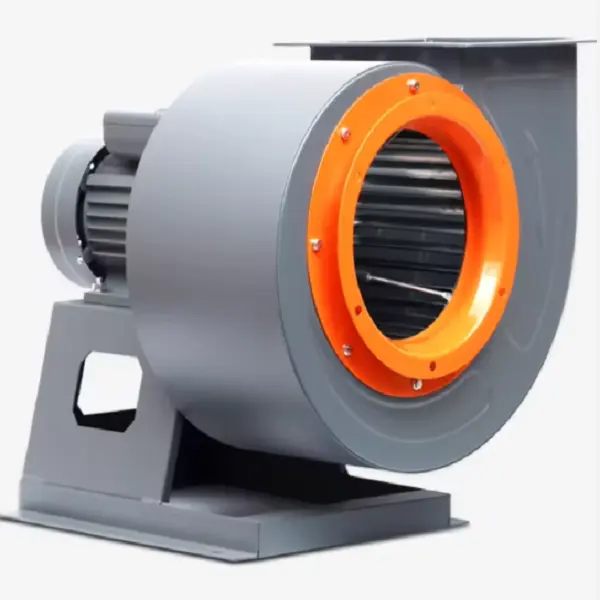

Hebei Ketong High Temperature Centrifugal Ventilator from a factory, mainly used for conveying high-temperature gas in industrial high-heat scenarios, featuring high-temperature-resistant material components (such as heat-resistant alloy impellers and high-temperature-sealed bearings) and stable operation performance under high-temperature conditions, making it suitable for environments with continuous high-temperature gas conveying demands.
It is generally installed at the flue gas outlet of industrial furnaces, the exhaust end of thermal processing equipment, the gas pipeline of waste incineration auxiliary systems, or the front-end of high-temperature waste gas treatment devices (such as high-temperature dust collectors), responsible for conveying high-temperature flue gas (temperature range usually 200-800℃), thermal processing waste gas, incineration tail gas, or other high-temperature non-corrosive industrial gas. These fans are typically supplied tometallurgical plants, thermal power plants, waste incineration plants, petrochemical refining enterprises, or high-temperature industrial equipment manufacturing companies.
This High Temperature Centrifugal Ventilator can meet the high-temperature gas conveying needs of industrial high-heat production links and high-temperature waste gas treatment equipment, while strictly complying with industrial high-temperature fan safety operation standards, high-temperature gas emission specifications, and thermal equipment safety protection requirements.
|
Number |
Machine number No |
Rotational speed r/min |
Total Pressure Pa |
Volumetric Flow Rate m³/h |
Motor power KW |
|
1 |
8D |
1450 |
2525~1771 |
9900~23100 |
15、18.5 |
|
2 |
9D |
1450 |
3195~2241 |
14100~33000 |
30、37 |
|
3 |
10D |
1450 |
3944~2767 |
19300~45100 |
45、55 |
|
4 |
11D |
1450 |
4772~3348 |
25700~60000 |
75、90 |
|
960 |
2092~1468 |
17000~39700 |
22、30 |
||
|
5 |
12D |
1450 |
5679~.3984 |
33400~77900 |
110、132 |
|
960 |
2490~1746 |
22100~51600 |
37、45 |
||
|
6 |
13D |
1450 |
6665~4676 |
42400~99000 |
160~200 |
|
960 |
2922~2050 |
28100~65600 |
45、55 |
||
|
7 |
14D |
1450 |
7729~5423 |
53000~124000 |
220~280 |
|
960 |
3388~2377 |
35100~102100 |
75、90 |
||
|
8 |
15D |
1450 |
8873~6226 |
65100~152000 |
315~400 |
|
960 |
3890~2729 |
43100~101000 |
90~132 |
||
|
730 |
2250~1578 |
32800~76800 |
45、55 |
||
|
9 |
16D |
1450 |
10095~7083 |
79100~185000 |
450、560 |
|
960 |
4426~3105 |
52400~122000 |
132、160 |
||
|
730 |
2560~1795 |
39800~93000 |
55、75 |
||
|
10 |
17D |
960 |
4996~3505 |
62900~147000 |
160~220 |
|
730 |
2889~2027 |
47800~112000 |
75~110 |
||
|
11 |
18D |
960 |
5601~3929 |
74600~174000 |
220~315 |
|
730 |
3239~2272 |
56700~132000 |
110、132 |
||
|
12 |
19D |
960 |
6241~4378 |
87700~205000 |
280~400 |
|
730 |
3609~2532 |
66700~156000 |
132~185 |
||
|
13 |
20D |
960 |
6915~4851 |
10200~239000 |
400、500 |
|
730 |
3999~2805 |
77800~182000 |
160~220 |
||
|
14 |
21D |
960 |
7622~5348 |
118000~276000 |
500~630 |
|
730 |
4408~3093 |
90100~210000 |
220~280 |
||
|
580 |
2783~1952 |
71600~167000 |
160 |
||
|
15 |
|
960 |
8366~5870 |
136000~318000 |
630~800 |
|
|
730 |
4838~3394 |
104000~242000 |
280~355 |
|
|
580 |
3055~3143 |
82300~192000 |
160、185 |
||
|
16 |
23.5D |
960 |
9545~6698 |
166000~387000 |
800~1120 |
|
730 |
5519~3873 |
126000~395000 |
355~500 |
||
|
580 |
3486~2445 |
100000~234000 |
220、250 |
||
|
17 |
25D |
730 |
6248~4383 |
152000~355000 |
500~710 |
|
580 |
3944~2767 |
121000~282000 |
250~355 |
||
|
18 |
26.5D |
730 |
7020~4925 |
181000~422000 |
630~900 |
|
580 |
4432~3109 |
144000~336000 |
355、450 |
||
|
480 |
3036~2129 |
119000~278000 |
220、250 |
||
|
19 |
28D |
730 |
7837~5498 |
231000~498000 |
1000~1250 |
|
580 |
4948~3471 |
169000~396000 |
450~630 |
||
|
480 |
3389~2377 |
140000~328000 |
315~355 |
||
|
20 |
29.5D |
730 |
8699~5104 |
250000~583000 |
1120~1600 |
|
580 |
5491~3853 |
199000~463000 |
560~800 |
||
|
480 |
3762~2639 |
164000~383000 |
355~500 |
1．Designed for harsh environments: Designed to carry high-temperature, weakly volatile and non-flammable gases, often with a dust density of 150 mg/m3. The design emphasizes heat transfer and shock resistance.
2．Advanced temperature management system: The design incorporates efficient cooling for critical components. For example, some models use cooling fans with a new air-cooling system to remove heat from bearings and other critical components, ensuring reliable performance.
3．Durable mechanical construction: Key components such as impellers made from materials such as high-temperature aircraft steel ensure longevity. The rotor assembly undergoes intensive alternating current balancing to ensure smooth, vibration-free operation.
4．Operational Versatility: These fans support a variety of drive modes, including direct drive and belt drive (C-style) configurations, allowing flexibility for a variety of installation and power delivery needs. This adjustability is a characteristic shared with other rigid designs, such as high front-drive centrifugal fans.
High Temperature Centrifugal Ventilator are needed in many industries:
1．Metallurgical and Industrial Furnaces: It is essential for the removal of hot air from various heating furnaces, boilers, boilers and other industrial furnaces.
2．Combustion and Condensation Methods: Widely used in combustion equipment, furnaces, paint sprayers, and hot air circulation systems, often in intake type models.
3．Environmental and Supply Systems: Used in boiler vents and other systems where air or fuel needs to pass at high temperatures.
4．Material Handling and Applications: Suitable for heat exchangers in industries involving materials such as food, feed and minerals, where the gas is non-volatile and free of volatiles.
