Hebei Ketong produces quality Ventilator Industrial Centrifugal. And it is mainly used for optimizing air circulation in power plant workshops, equipment cabins, and auxiliary facilities, as well as discharging high-temperature residual air, dust-laden gas, or mechanical exhaust gas generated during power generation processes, with outstanding ventilation efficiency and stable air volume control performance to ensure a safe and comfortable operating environment for power plant equipment and personnel.
It is generally installed at the air inlet of boiler auxiliary machine rooms, the exhaust port of turbine generator cabins, the ventilation outlet of coal handling system workshops, or the air exchange section of transformer stations, responsible for conveying fresh air into the plant area, and discharging high-temperature air, coal dust-containing gas, or equipment heat dissipation exhaust gas produced in power generation links such as coal combustion, steam circulation, and electrical equipment operation.
This fan is typically suitable for thermal power stations, hydroelectric power stations (for auxiliary workshop ventilation), auxiliary facilities departments at nuclear power plants, new energy generation enterprises (such as solar thermal power generation), or electrical equipment manufacturing and maintenance companies.This Ventilator Industrial Centrifugal can effectively regulate the air environment in key areas of power plants, fully meeting the ventilation, heat dissipation, and dust removal requirements of power generation equipment and workshops, while strictly complying with the national power industry safety operation standards and industrial plant ventilation and air quality specifications.
|
Machine Number |
Speed R/min |
Total pressure pa |
Traffic M³/h |
Power KW |
Electric motor |
|
|
model |
KW |
|||||
|
6.8A |
2930 |
11590 |
1700 |
9.32 |
Y160S2-2 |
15 |
|
11820 |
2160 |
11.59 |
||||
|
12000 |
2620 |
13.57 |
||||
|
12140 |
3080 |
15.93 |
Y160L-2 |
18.5 |
||
|
12120 |
3540 |
18.27 |
||||
|
11980 |
4000 |
20.55 |
Y180M-2 |
22 |
||
|
11740 |
4460 |
22.60 |
||||
|
7.1A |
2900 |
12347 |
2074 |
12.10 |
Y160M2-2 |
15 |
|
12661 |
2658 |
15.02 |
||||
|
12807 |
3000 |
16.43 |
Y160L-2 |
18.5 |
||
|
12896 |
3242 |
18.02 |
||||
|
13024 |
3826 |
21.14 |
Y180M-2 |
22 |
||
|
12935 |
4410 |
24.30 |
Y200L1-2 |
30 |
||
|
12739 |
4990 |
27.65 |
||||
|
7.7A |
2900 |
14543 |
2349 |
15.81 |
Y180M-2 |
22 |
|
14887 |
3010 |
19.60 |
||||
|
15171 |
3671 |
23.52 |
Y200L1-2 |
30 |
||
|
15319 |
4332 |
27.59 |
||||
|
15220 |
4993 |
31.72 |
Y200L2-2 |
37 |
||
|
14985 |
5654 |
36.07 |
||||
|
14583 |
6315 |
40.40 |
Y225M-2 |
45 |
||
|
8D |
2950 |
16216 |
2996 |
22.97 |
Y200L1-2 |
30 |
|
16528 |
3824 |
28.24 |
||||
|
16931 |
4651 |
33.98 |
Y200L2-2 |
37 |
||
|
17096 |
5478 |
39.78 |
Y225M-2 |
45 |
||
|
16931 |
6306 |
45.52 |
||||
|
16729 |
7133 |
51.83 |
Y250M-2 |
55 |
||
|
(16216) |
(7960) |
(57.84) |
|
|
||
|
9D |
2970 |
20803 |
4295 |
42.24 |
Y225M-2 |
45 |
|
21202 |
5481 |
51.93 |
Y250M-2 |
55 |
||
|
21719 |
6667 |
62.48 |
Y280S-2 |
75 |
||
|
21931 |
7853 |
73.15 |
||||
|
21719 |
9039 |
83.71 |
Y280M-2 |
90 |
||
|
(21461) |
(10225) |
(95.31) |
|
|
||
|
(20808) |
(11411) |
(106.40) |
|
|
||

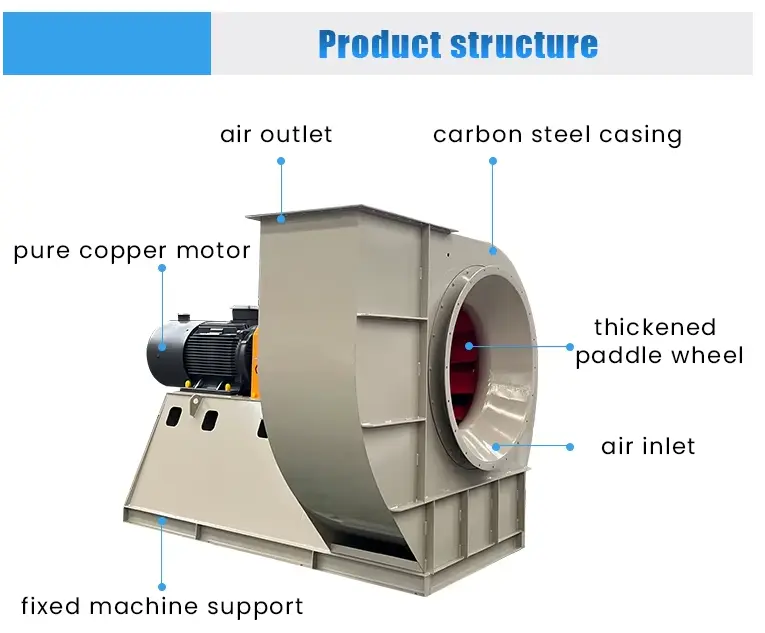

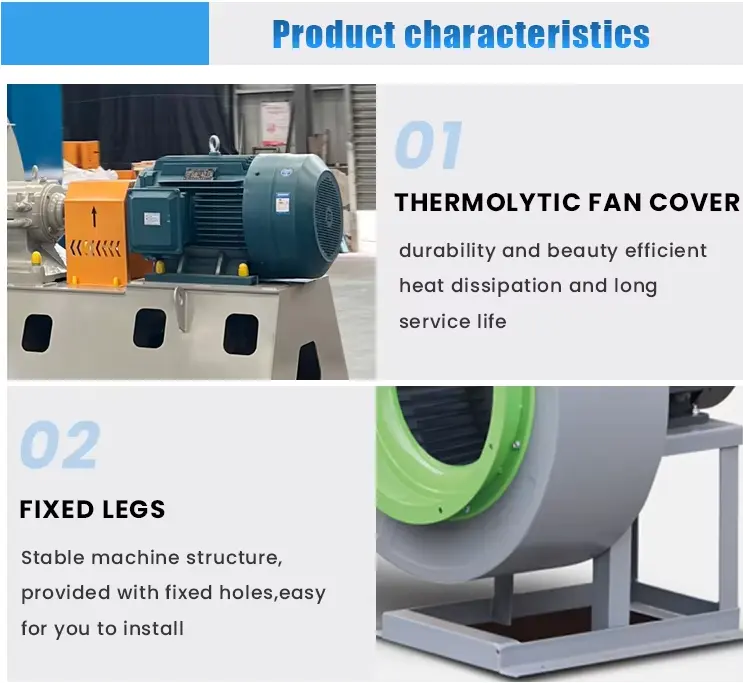

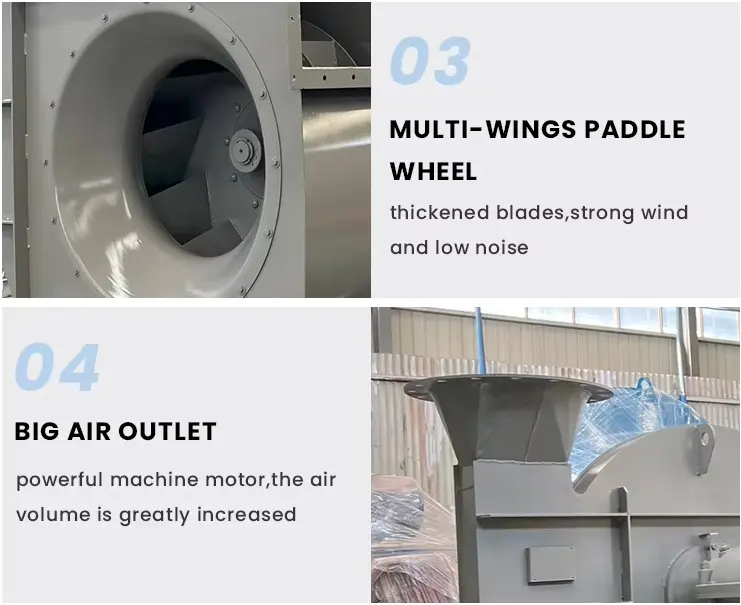

Key Product Features:
1. Advanced Impeller Technology: The single-piece, cold-rolled impeller combines strength and high efficiency. The impeller is capable of operating efficiently at all operating temperatures.
2. Robust Construction: The rigid steel frame with reinforcing ribs provides structural integrity while reducing vibration transmission.
3. Flexible Drive Options: A variety of drive options are available, including direct drive, belt drive, and variable frequency drive.
4. Special models for working conditions: For equipment requiring high power, a series of high-power high-speed centrifugal fans with high-speed roots and strong impellers to withstand the high-speed operating forces.
Main application areas:

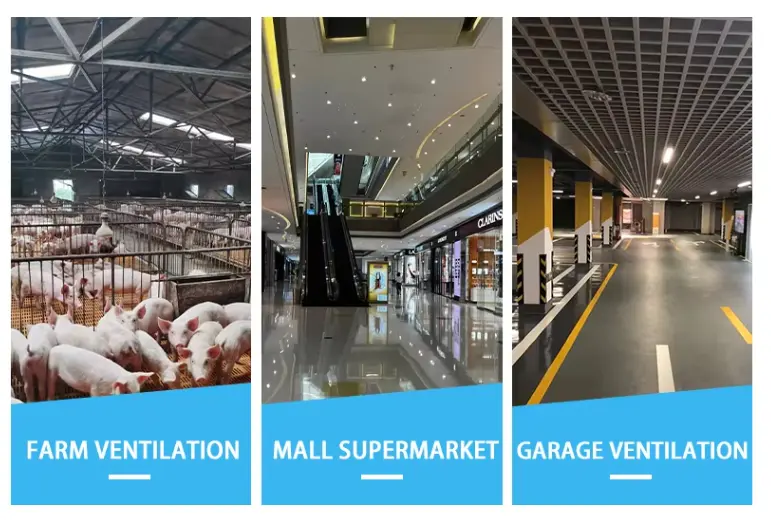

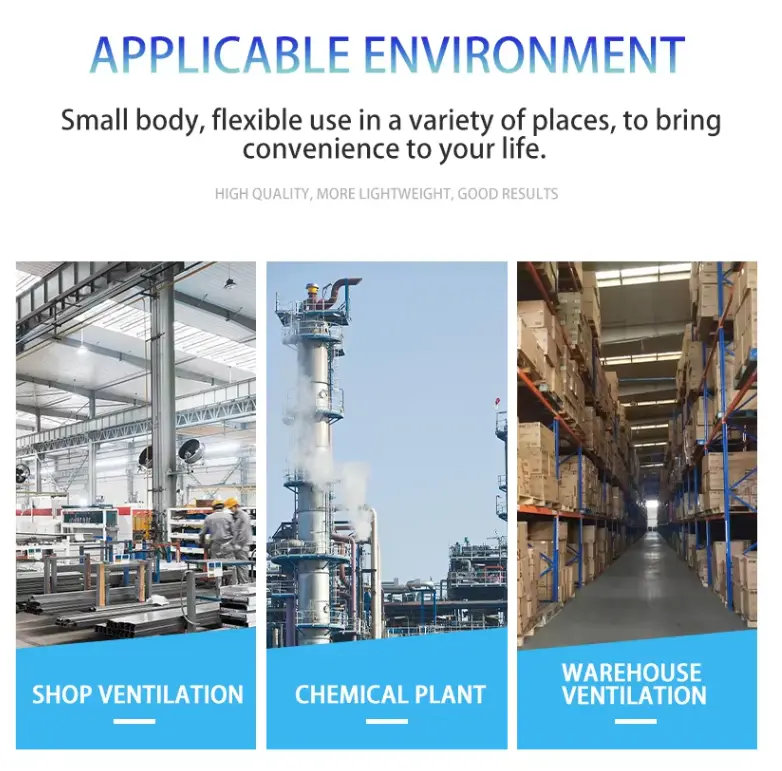

This Ventilator Industrial Centrifugal can be used in many areas, for example, Industrial ventilation and exhaust systems;HVAC systems;Dust removal and air purification systems;Material handling and air transportation;Cooling and drying operations;Extraction of fumes from welding and manufacturing operations;Supply of combustion air.
