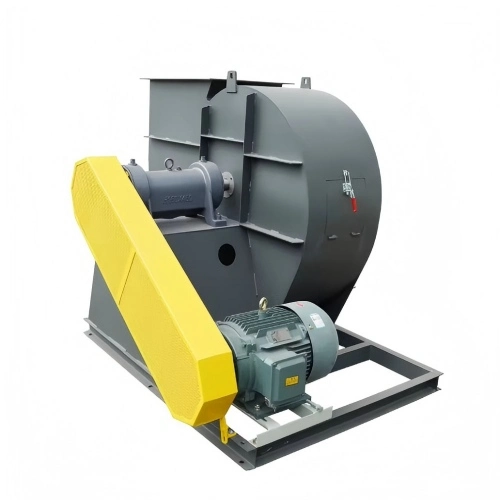

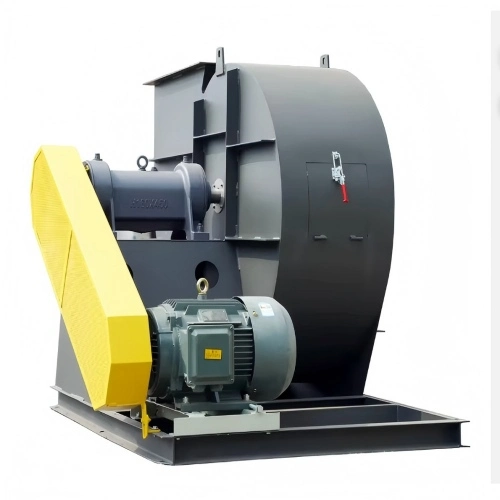

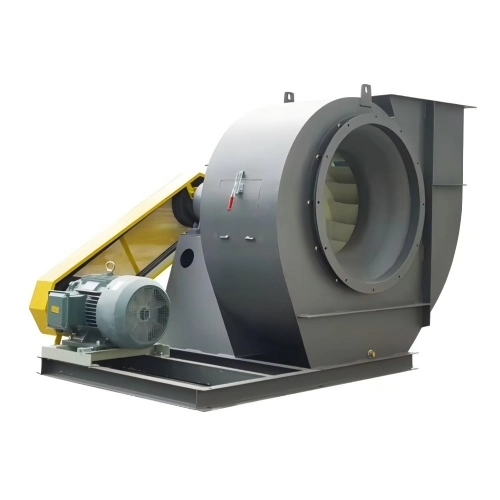

Hebei Ketong provideds quality Belt Driven Centrifugal Fan. This centrifugal fan is primarily used for medium- and high-pressure gas transport and ventilation. It is typically installed at the air inlet or outlet of industrial plant ventilation systems, dust removal equipment units, boiler induced draft devices, or commercial building fresh air systems to transport ambient temperature air, industrial waste gas, dust-laden gas, or hot air.

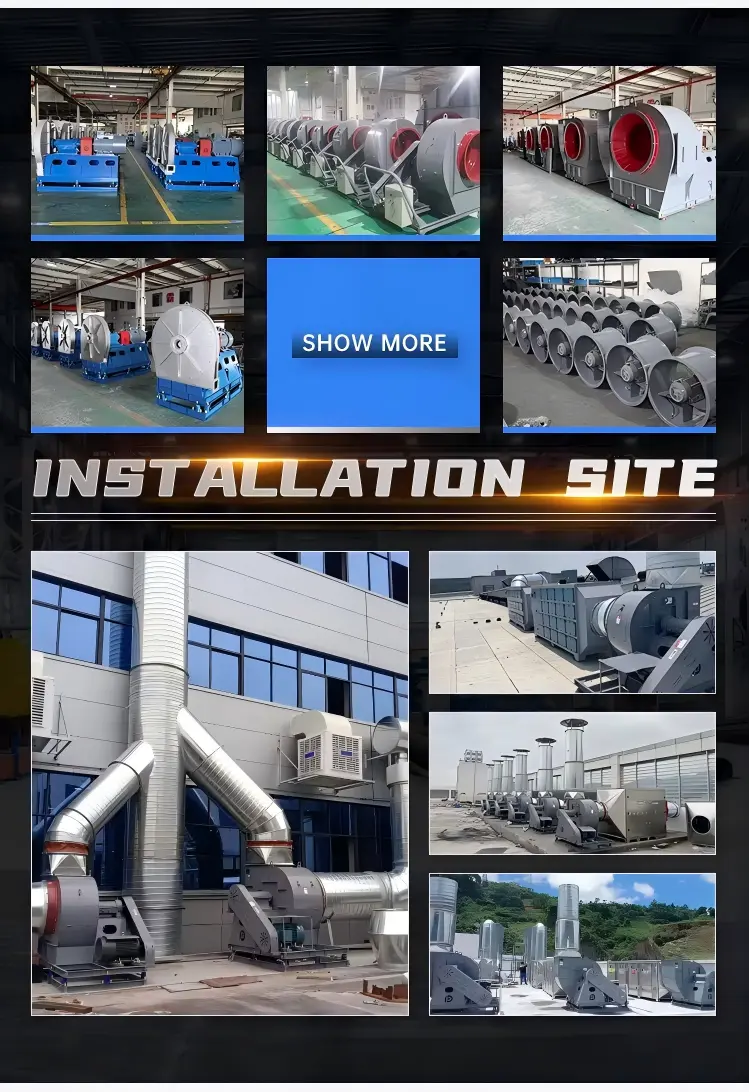

This type of fan is commonly found in machinery plants , mines, air-conditioning installations, building materials factories and large shopping centres.It can perfectly meet the relevant standards for ventilation, dust control, and air circulation in the civil construction industry. Hebei Ketong is a trusted long-term supply partner for Belt Driven Centrifugal Fan in China, acting as a large-scale provider that caters to bulk procurement demands, delivers rapid order responses, maintains steady inventory levels, and offers preferential factory-direct pricing with negotiable quotations to support seamless cooperative purchases.
|
Y5-48 No8C Belt Driven Centrifugal Fans Performance and Accessory Selection Table |
||||||||||||||||
|
Rotational speed r/min |
Serial number |
Volumetric Flow Rate m³/h |
Total pressure Pa |
Internal efficiency% |
Internal powerkw |
Required power kw |
Electric motor |
V-belt |
Spindle pulley |
Motor pulley |
Motor Guide Rail Department |
|||||
|
Motor model |
Power |
Model |
Number of roots |
Internal perimeter |
Code name |
Specifications |
Code name |
Specifications |
Code name (Two Sets) |
|||||||
|
2000 |
1 |
3794 |
3323 |
72 |
17.47 |
|
Y200L-4 |
30 |
C |
4 |
3150 |
ST0302-15 |
50×65×C4 |
ST⁰302-16 |
355×55×C4 |
ST⁰201×04 |
|
1800 |
1 |
12415 |
2686 |
72 |
12.74 |
17.43 |
Y180L-4 |
22 |
C |
3 |
3150 |
ST0302-15 |
250×65×C3 |
ST0302-16 |
315×48×C3 |
ST⁰201×03 |
|
1600 |
1 |
11035 |
2118 |
72 |
8.94 |
12.24 |
Y160L-4 |
15 |
C |
3 |
2800 |
ST0302-15 |
250×65×C3 |
ST0302-15 |
280×42×C3 |
ST⁰201×03 |
|
1400 |
1 |
9656 |
1919 |
72 |
5.99 |
8.20 |
Y160M-4 |
11 |
C |
2 |
2800 |
ST0302-15 |
250×65×C2 |
ST0302-15 |
250×42×C2 |
ST0201×03 |
5-48No8C Product Parameters (For additional Belt Driven Centrifugal Fans, please contact us.)

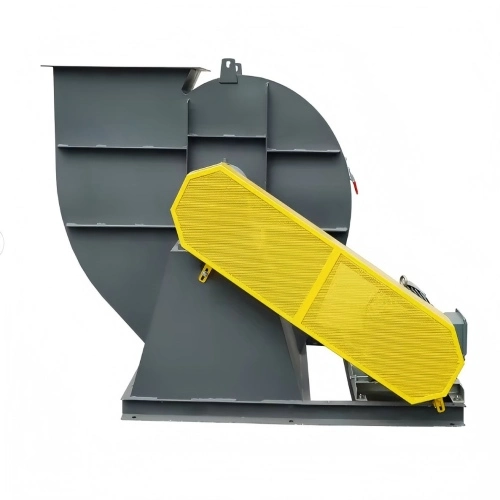

1.The belt drive design of this Belt Driven Centrifugal Fan offers users exceptional flexibility in adjustment. Through simple pulley replacement or modification, precise control over fan speed, airflow volume and pressure is achieved, enabling effortless adaptation to ventilation requirements across diverse operating conditions. This significantly enhances the fan's adaptability across various application scenarios.
2.The fan's core components are manufactured from high-strength, wear-resistant materials, ensuring fundamental robustness. Simultaneously, the belt drive method effectively isolates direct mechanical loads between the motor and impeller, reducing wear on critical parts. This substantially extends the unit's service life while lowering maintenance frequency and long-term operational costs.
3.This series of fans covers a broad range of pressure and airflow, reliably overcoming resistance in diverse ducting systems. Whether for production ventilation in industrial plants, pneumatic conveying in dust extraction systems, or space ventilation in civil buildings, it delivers efficient, dependable gas conveyance solutions to meet varied ventilation requirements.
