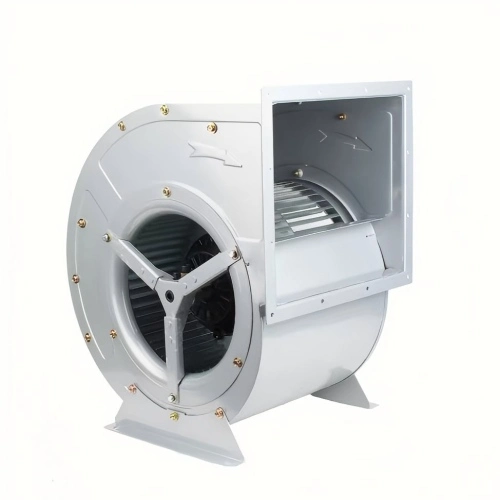

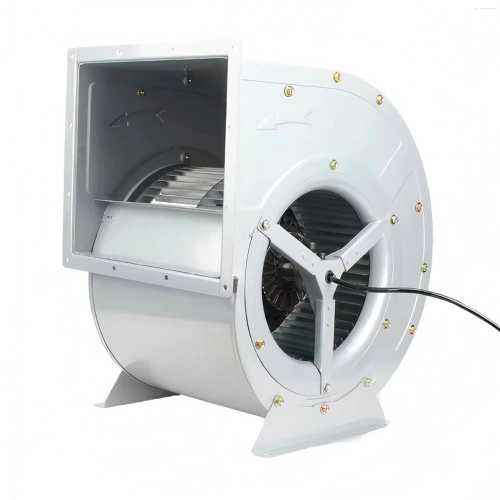

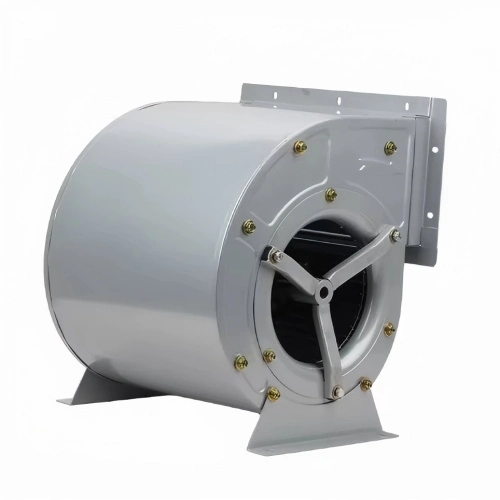

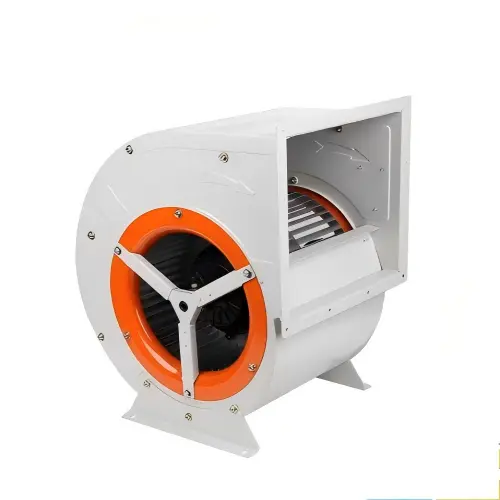

This Hebei Ketong durable Double Inlet Centrifugal Fan is primarily used for high-flow-rate gas transport and pressurization. It is typically installed in the inlet or outlet sections of large HVAC systems, industrial plant ventilation ducts, wastewater treatment plant aeration systems, or flue gas pipelines in thermal power plants to transport fresh air, industrial exhaust gas, flue gas, or low-concentration dust gases. It is ideal for use in places such as shopping malls, exhibition halls and data centres that require continuous high-flow ventilation, combining energy conservation and durability.
|
Model |
Rated Voltage (V) |
Frequency (Hz) |
Current (A) |
Input Power (W) |
Maximum Speed (r/min) |
Maximum Airflow (m³/h) |
Total Pressure (Pa) |
Noise (dB(A)) |
|
DKT4E-200 |
220 |
50 |
1.95 |
450 |
1360 |
1500-2800 |
300-280 |
62 |
|
DKT4D-200 |
380 |
50 |
0.85 |
400 |
1360 |
1500-2800 |
300-280 |
62 |
|
DKT6E-200 |
220 |
50 |
1.0 |
180 |
930 |
1200-2000 |
130-100 |
58 |
|
DKT6D-200 |
380 |
50 |
0.90 |
300 |
930 |
1200-2000 |
130-100 |
58 |
|
DKT4E-250 |
220 |
50 |
3.5 |
800 |
1360 |
2500-4000 |
400-270 |
75 |
|
DKT4D-250 |
380 |
50 |
1.63 |
800 |
1360 |
2500-4000 |
400-270 |
75 |
|
DKT6E-250 |
220 |
50 |
1.4 |
370 |
930 |
2100-3000 |
220-200 |
68 |
|
DKT6D-250 |
380 |
50 |
1.2 |
370 |
930 |
2100-3000 |
220-200 |
68 |
|
DKT4D-300 |
380 |
50 |
4.6 |
3000 |
1360 |
4500-7000 |
800-780 |
82 |
|
DKT6E-300 |
220 |
50 |
5.0 |
1100 |
930 |
3000-5000 |
420-400 |
72 |
|
DKT6D-300 |
380 |
50 |
3.0 |
1100 |
930 |
3000-5000 |
420-400 |
72 |

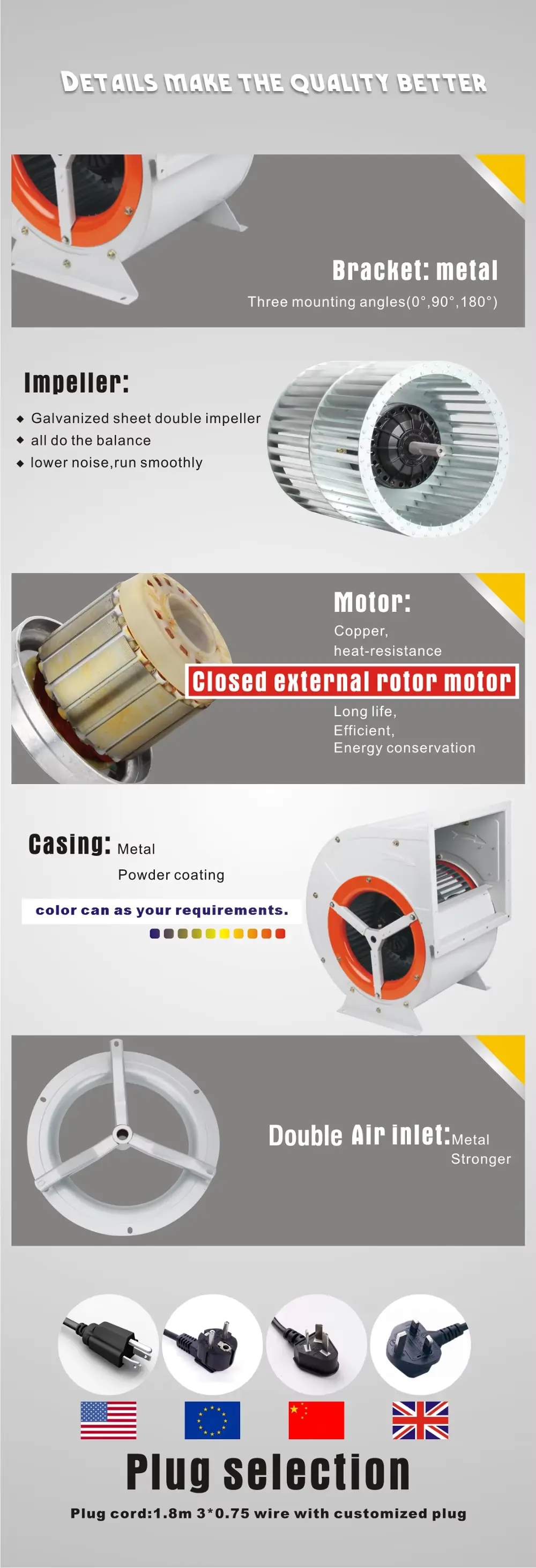

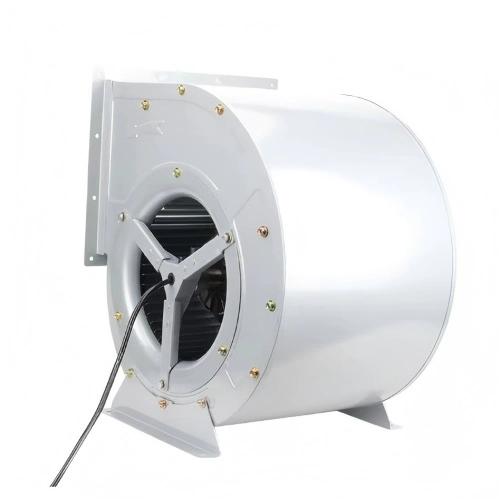

Crafted with precision, this double inlet centrifugal fan features an exquisitely powder-coated body and a compact, space-saving design available in multiple sizes for easy installation. Its core performance is driven by a uniquely designed multi-layer impeller with a curved front coil and a rotor meticulously balanced both dynamically and statically, ensuring exceptionally smooth and quiet operation. Powered by a durable external rotor motor—complete with an integrated thermistor and matching speed controller—it delivers reliable airflow for demanding applications. This makes it an ideal ventilation solution for a wide range of commercial and public spaces, including hotels, conference rooms, restaurants, train stations, supermarkets, and airports.
