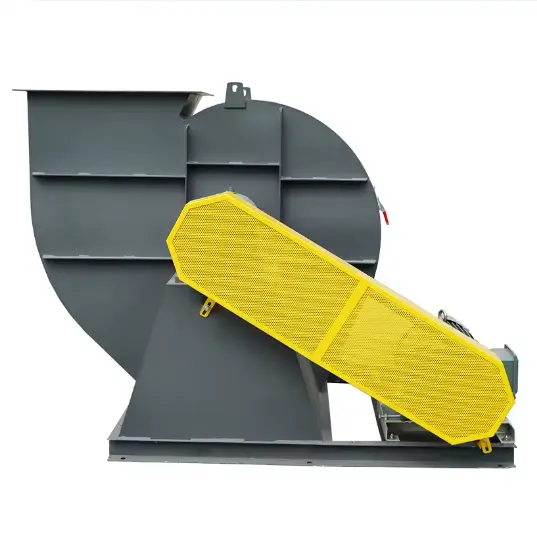

This Type C Centrifugal Fan from Hebei Ketong factory is primarily used for gas transport and ventilation in general industrial applications. It is typically installed at the inlet or outlet of factory ventilation ducts, general dust removal equipment, air conditioning fresh air systems, or conventional environmental protection devices. It transports ambient temperature air, clean industrial waste gas, non-corrosive process gases, or gases containing trace amounts of dust. The precisely engineered flow path and impeller deliver accurate airflow and pressure matching, effectively handling resistance in common ducting systems.
Purchasers of this fan are usually general machinery manufacturers, building HVAC companies, light industrial enterprises, industrial park operators, or environmental equipment distributors. This fan meets relevant standards for general industrial ventilation, gas transport, and basic environmental compliance.
|
Number |
Machine number No |
Rotational speed r/min |
Total Pressure Pa |
Volumetric Flow Rate m³/h |
Motor power KW |
|
1 |
4.5C |
3000 |
2650~2136 |
3643~7285 |
7.5 |
|
2900 |
2478~1996 |
3521~7042 |
5.5、7.5 |
||
|
2570 |
1946~1567 |
3120~6241 |
4.0、5.5 |
||
|
2340 |
1613~1299 |
2841~5682 |
3.0、4.0 |
||
|
2750 |
3451~2779 |
6435~12866 |
15、18.5 |
||
|
2 |
5.6C |
2500 |
2852~2297 |
5850~11670 |
11、15 |
|
2200 |
2209~1779 |
5148~10296 |
7.5、11 |
||
|
2000 |
1825~1470 |
4680~9360 |
5.5、7.5 |
||
|
3 |
7.1C |
2400 |
4225~3402 |
1145~22890 |
37 |
|
2350 |
4051~3262 |
11207~2241 |
30、37 |
||
|
2130 |
3328~2680 |
10158~2031 |
22、30 |
||
|
2000 |
3934~2363 |
9538~19075 |
18.5、22 |
||
|
4 |
9C |
1930 |
4390~3536 |
18740~3749 |
55、75 |
|
1800 |
3819~3075 |
17484~3496 |
45、55 |
||
|
1700 |
3406~2743 |
16512~3302 |
37、45 |
||
|
1570 |
2905~2340 |
15250~3049 |
30、37 |
||
|
5 |
10C |
1700 |
4105~3386 |
22651~4530 |
75 |
|
1620 |
3819~3075 |
21585~4317 |
55、75 |
||
|
1510 |
3318~2672 |
20119~4023 |
45、55 |
||
|
1420 |
2934~2363 |
18920~3784 |
37、45 |

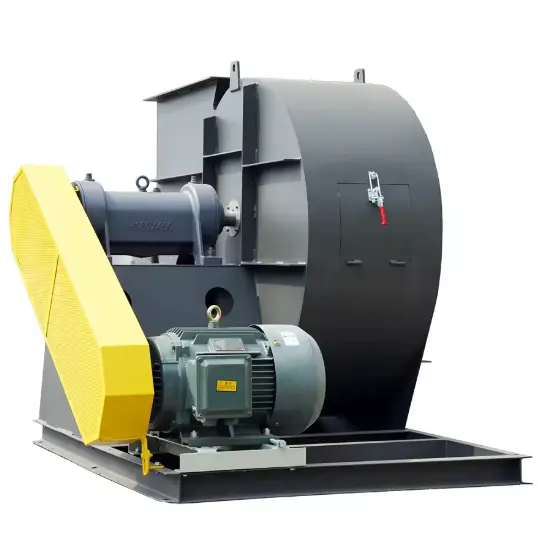

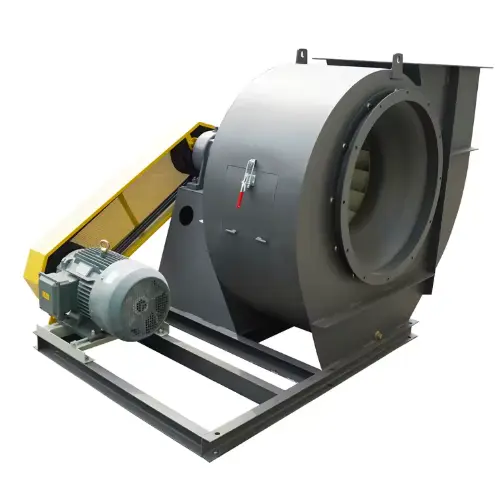

The Type C Centrifugal Fan adopts a C-type aerodynamic structure design adapted to general operating conditions. The core components are made of high-quality carbon steel and have a compact structure for stable operation. Optimized flow channel and impeller design ensure precise matching of airflow and pressure, effectively overcoming conventional pipeline resistance. It is easy to install and disassemble, and has low maintenance costs, perfectly meeting the ventilation and gas transport needs and safety standards of general industrial applications.
