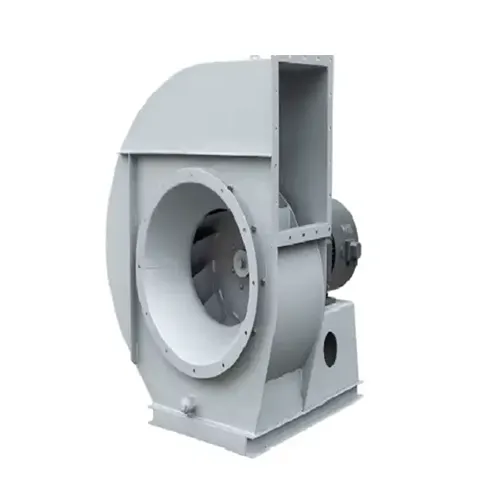

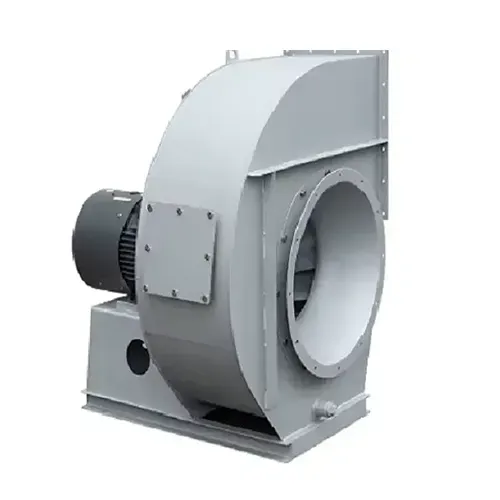

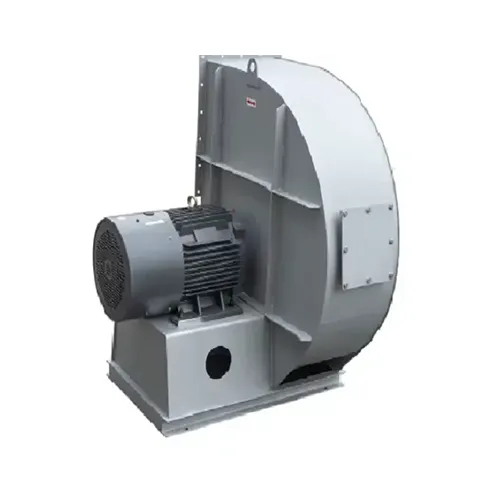

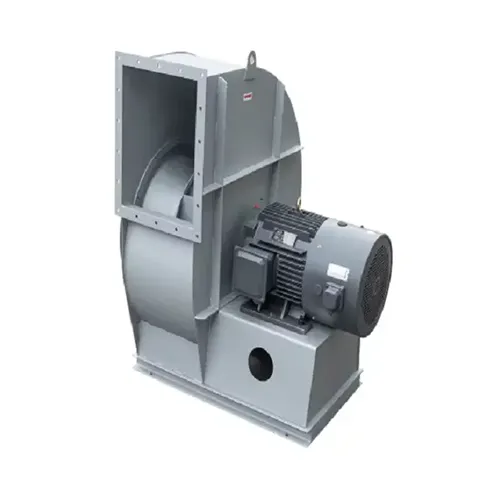

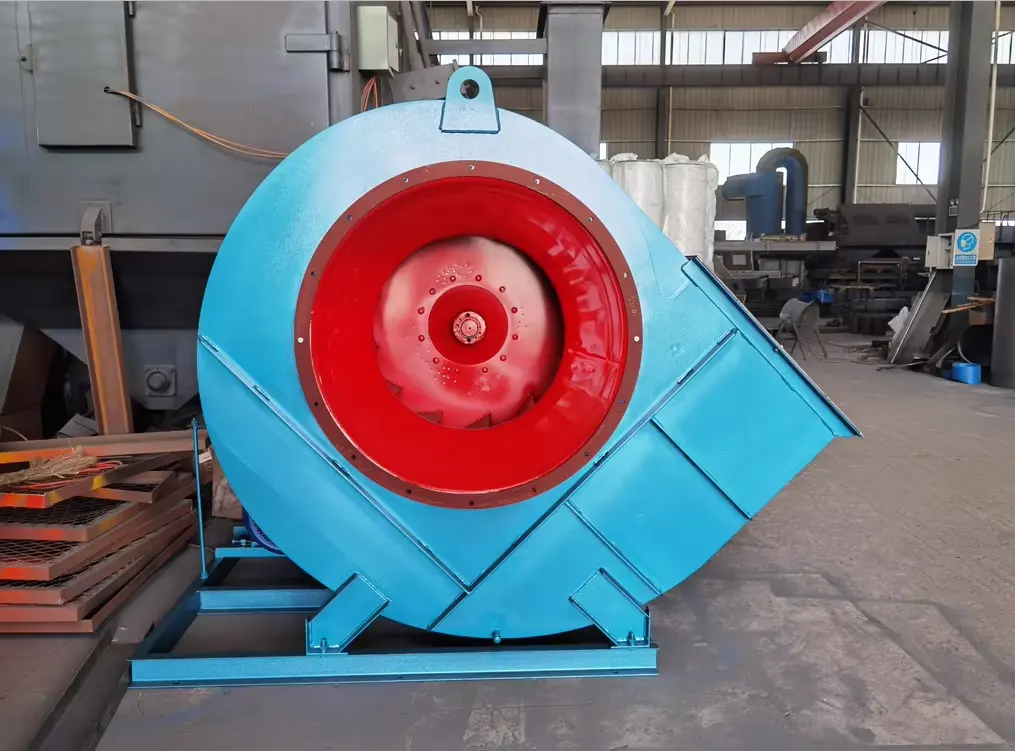

The Hebei Ketong High Pressure Inline Centrifugal Fan is from a China factory. It is a new series of high-efficiency fans developed independently by our company for use in industrial engineering and atmospheric control industries. It is characterized by high efficiency and low overall energy consumption of the equipment, and the energy efficiency index reaches the standard of Grade 1 energy efficiency. All products undergo rigorous quality testing and meet national safety standards.
|
Product Name |
LP73 Seres Backward Curved Centrifugal Blower for industrial exhaust system |
|
Impeller Diameter |
315mm-1250mm |
|
Air Volume |
1419-89170 m³/h(834-52453 CFM) |
|
Total Pressure |
Maximum reach 3000Pa(12 in.wg) |
|
Model Range |
315/355/400/450/500/560/630/710/800/900/1000/1120/1250 |
|
Product feature |
High pressure、High efficiency、Low power consumption、Belt driven/Direct drive、Max efficiency rate reach 88% |
|
Applicaions |
Manufacture plant,Kitchen exhaust system |

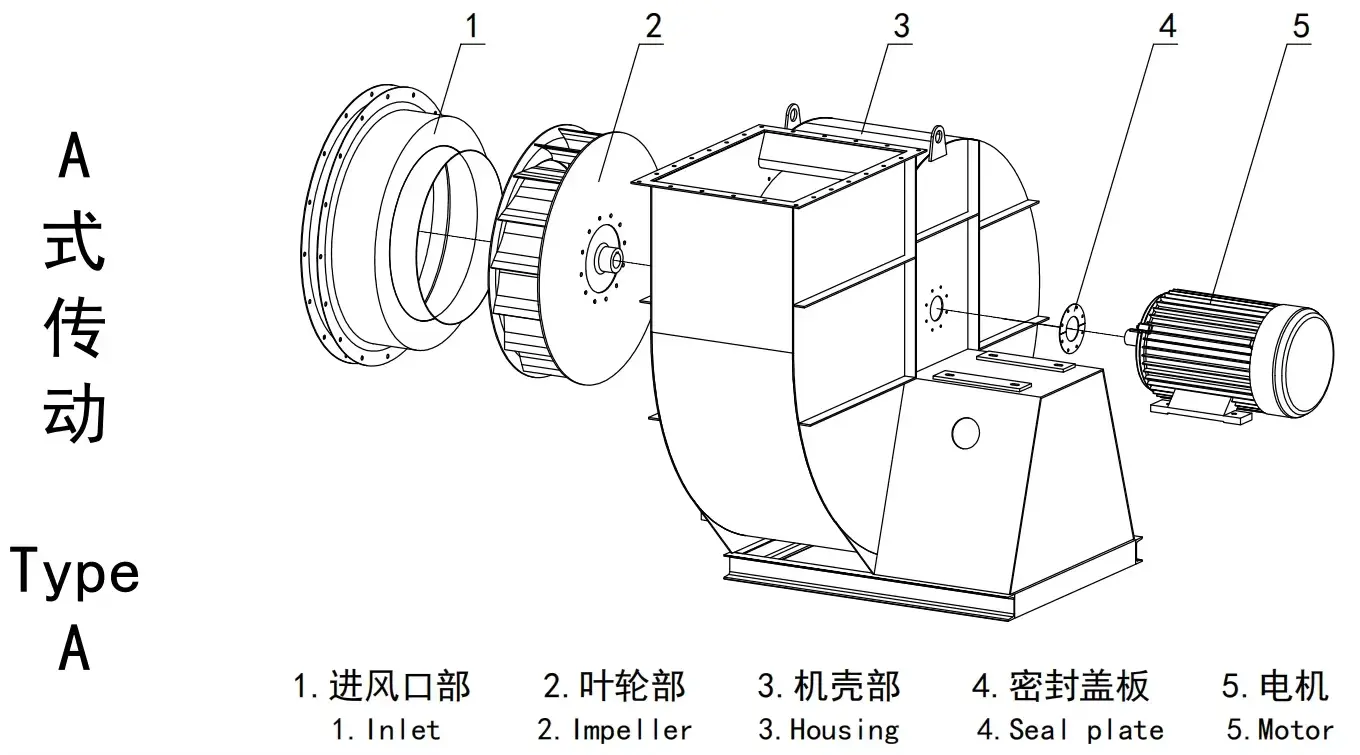

The High Pressure Inline Centrifugal Fan can transport air and other non self igniting, harmless, and non corrosive gases to copper materials. The gas temperature shall not exceed 80 ℃. This fan has good aerodynamic performance, low vibration, high efficiency, and long service life. There are four types of structures: A, B, C, and D. The fan is widely used for indoor ventilation and air exchange in industrial and mining enterprises, large buildings, hotels and restaurants.
