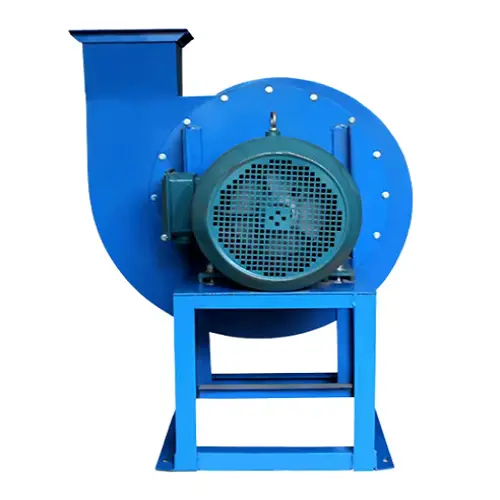

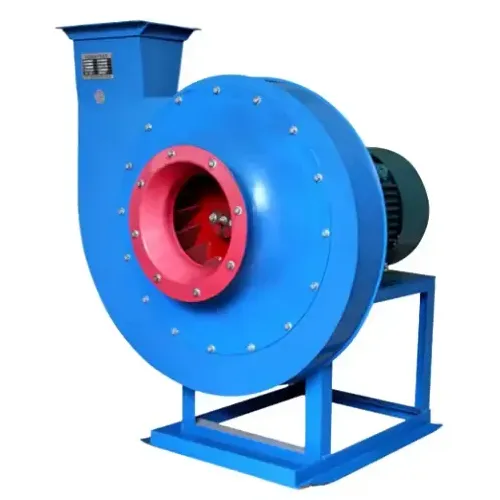

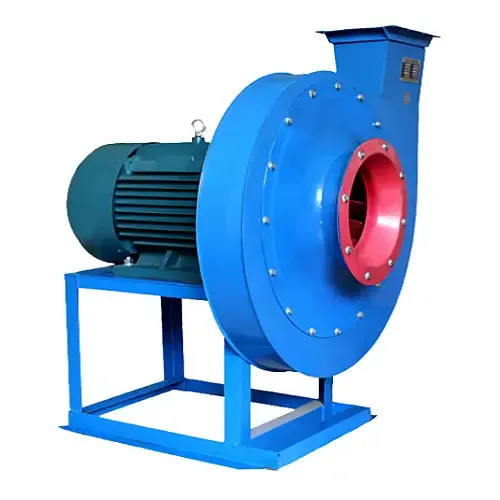

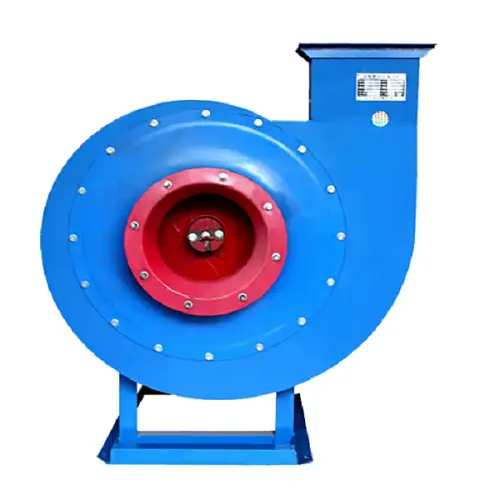

Our durable Hebei Ketong High Pressure Quiet Centrifugal Fan blends strong performance and ultra-low noise. With max static pressure up to 5000Pa, it tackles duct resistance easily. Operating noise stays below 60dB (1m away).It saves 12%-18% energy vs. traditional fans, supports 20%-100% airflow adjustment via frequency conversion, serving commercial, medical, and industrial needs reliably.
|
Model |
Power kw |
Speed r/min |
Voltage V |
Frequency Hz |
Flow m³/h |
Total Head Pa |
|
9-193.15A |
0.75KW-2 |
2830 |
380 |
50 |
402-545 |
2223-2262 |
|
1.1KW-2 |
2830 |
380 |
50 |
617-832 |
2231-2017 |
|
|
9-193.55A |
1.5KW-2 |
2840 |
380 |
50 |
560-760 |
2545-2590 |
|
2.2KW-2 |
2840 |
380 |
50 |
860-1160 |
2554-2310 |
|
|
9-194A |
2.2KW-2 |
2840 |
380 |
50 |
824-1264 |
3584-3597 |
|
3KW-2 |
2870 |
380 |
50 |
1410-1704 |
3507-3253 |
|
|
9-194.5A |
4KW-2 |
2890 |
380 |
50 |
1174-2062 |
4603-4447 |
|
5.5KW-2 |
2900 |
380 |
50 |
2281-2504 |
4297-4112 |
|
|
9-195A |
7.5KW-2 |
2900 |
380 |
50 |
1610-2844 |
5697-5517 |
|
11KW-2 |
2900 |
380 |
50 |
3166-3488 |
5323-5080 |
|
|
11KW-2 |
2900 |
380 |
50 |
2622-3619 |
7182-7109 |
|
|
9-195.6A |
15KW-2 |
2900 |
380 |
50 |
3309-4260 |
7068-6755 |
|
18.5KW-2 |
2900 |
380 |
50 |
3996-4901 |
6954-6400 |
|
|
18.5KW-2 |
2900 |
380 |
50 |
3220-5153 |
9149-9055 |
|
|
9-196.3A |
22KW-2 |
2900 |
380 |
50 |
4455-6066 |
9003-8601 |
|
30KW-2 |
2900 |
380 |
50 |
5690-6978 |
8857-8148 |
Ventilation and Dust Removal: This High Pressure Quiet Centrifugal Fan is suitable for facilities requiring the removal of waste heat, exhaust gases, or dust—such as factory workshops, boiler rooms, and machining workshops. Can be paired with high-efficiency filtration systems to handle high concentrations of dust (e.g.dust removal systems in cement plants and steel mills). The fan material must be wear-resistant, such as a manganese steel impeller, in order to withstand long-term high-load operation.
Process Support: In chemical production, used for conveying/blowing air to assist in material combustion, cooling, drying, and mixing processes. In metallurgy (e.g.steel manufacturing, non-ferrous metal smelting), used for blast furnace combustion, roughing gas capture, and flue gas emission to ensure continuous production. In power generation (thermal power plants), used for boiler combustion support and flue gas purification to ensure the safe and efficient operation of electrical equipment.
Industrial Refrigeration: Enhances cooling efficiency, reduces equipment start-up time, and extends service life.
